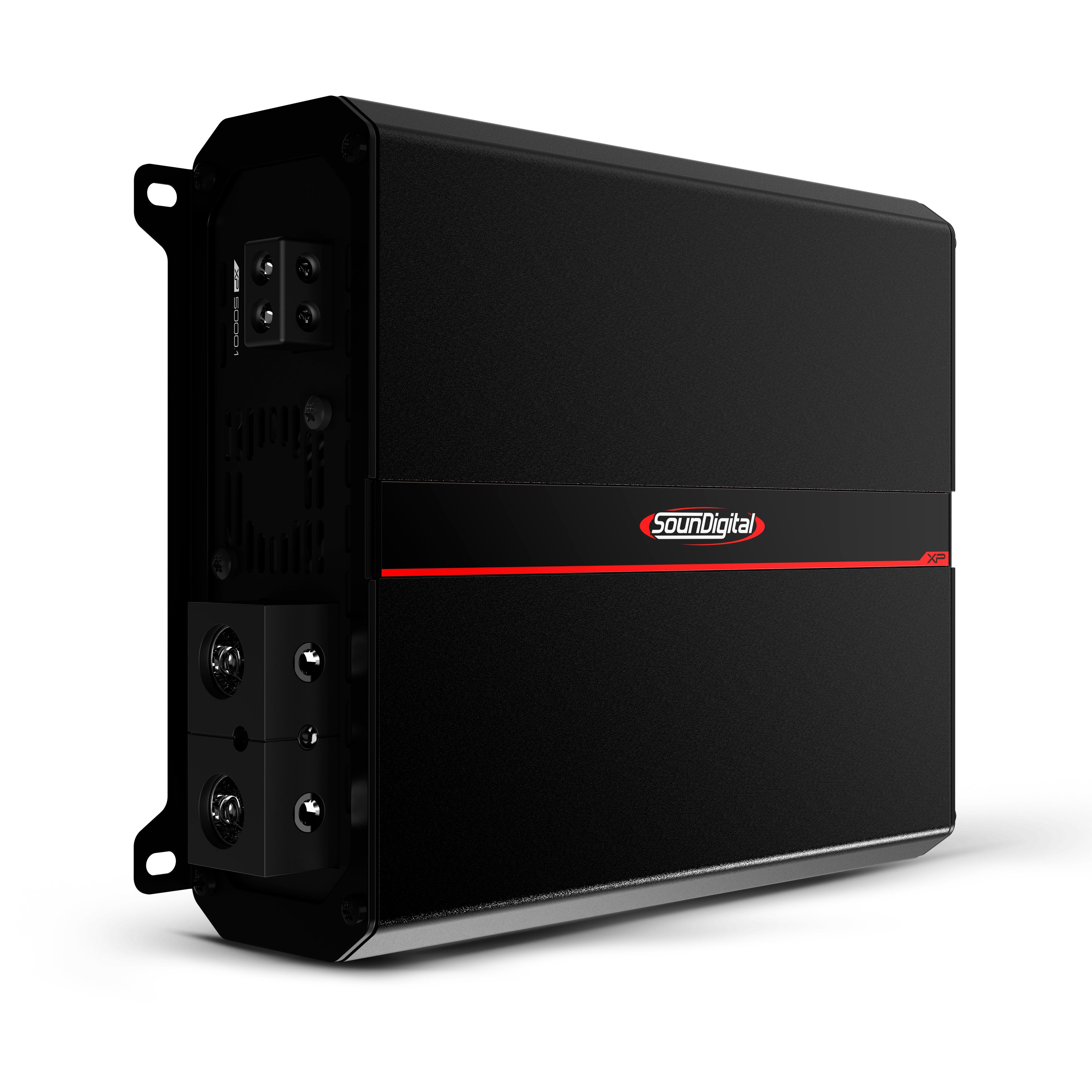

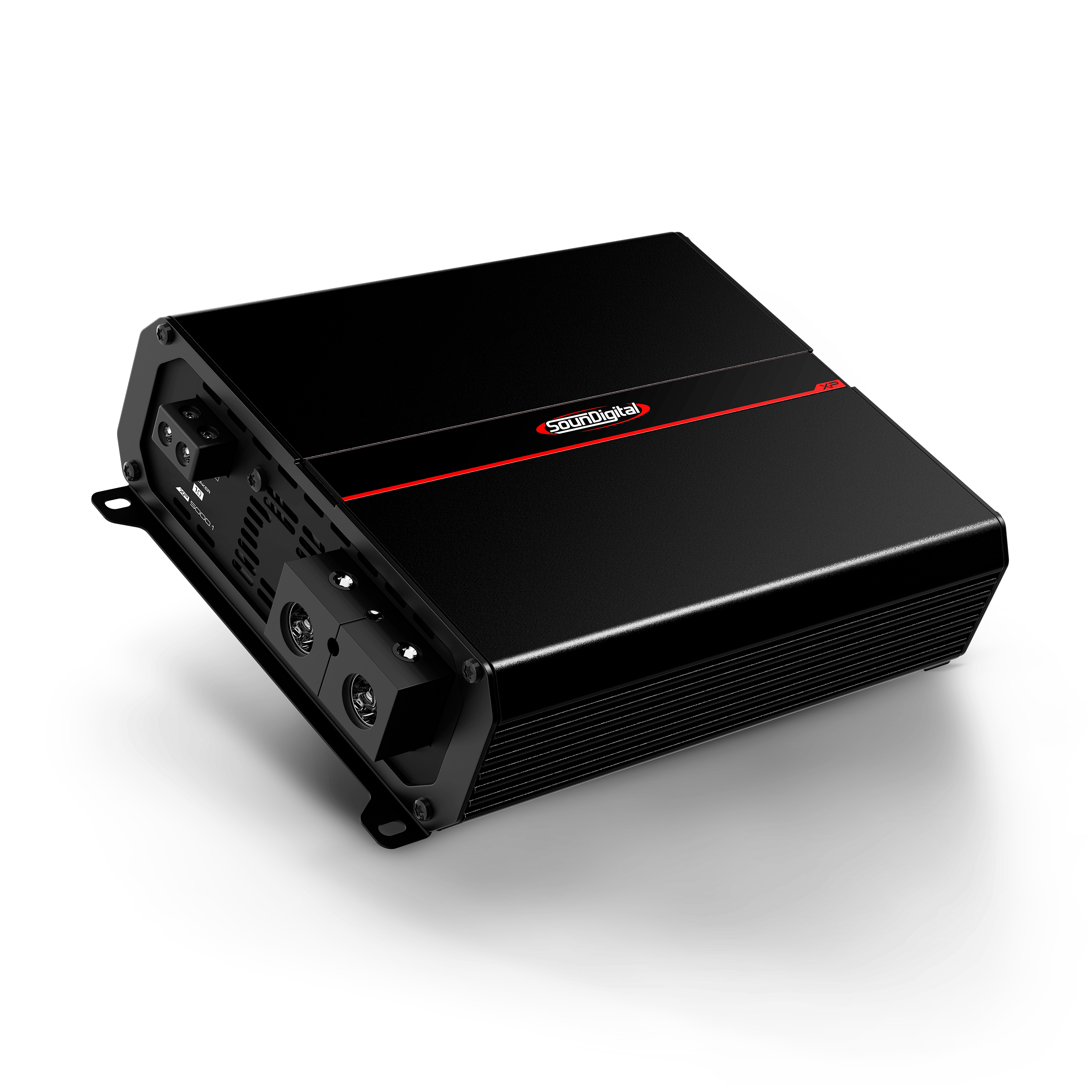

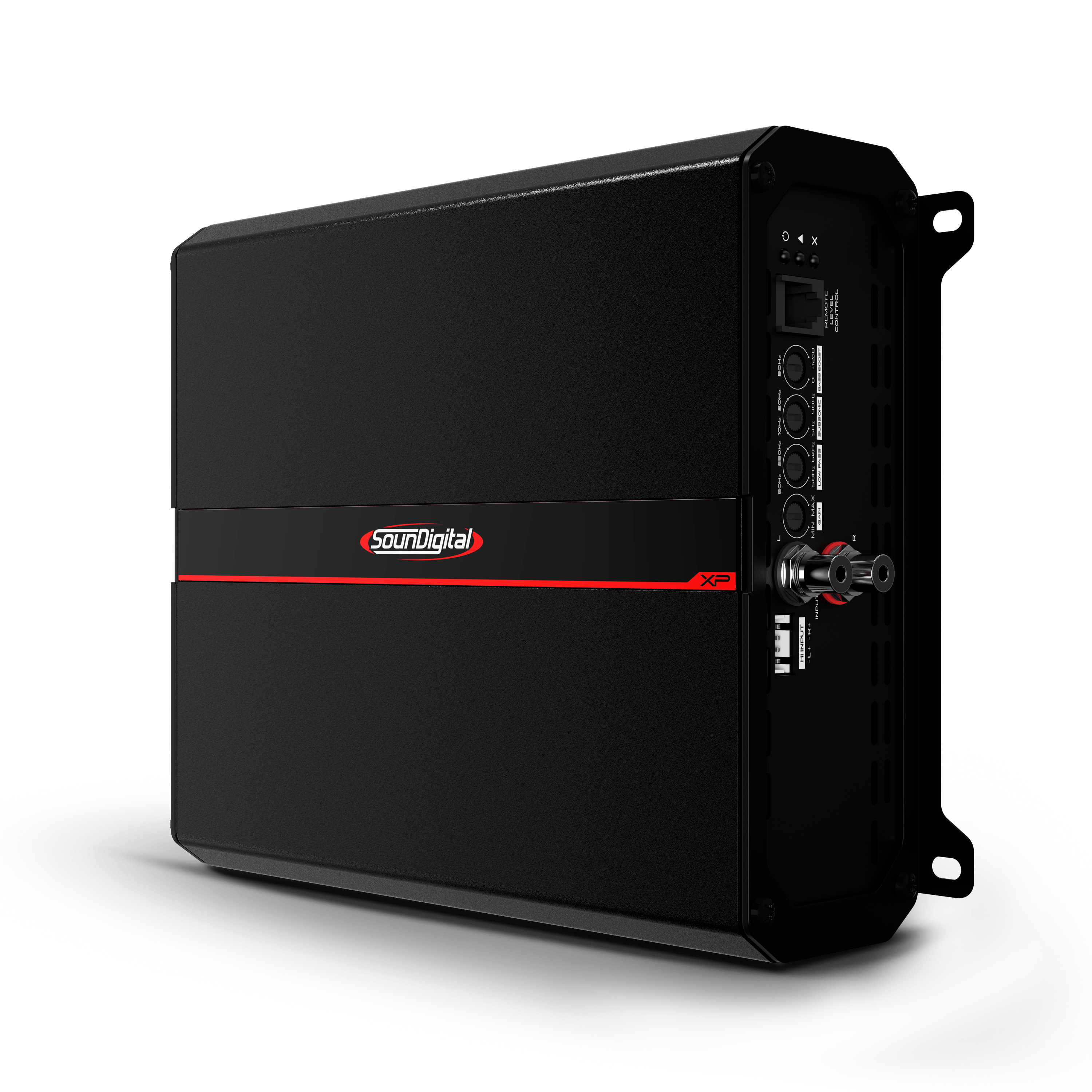

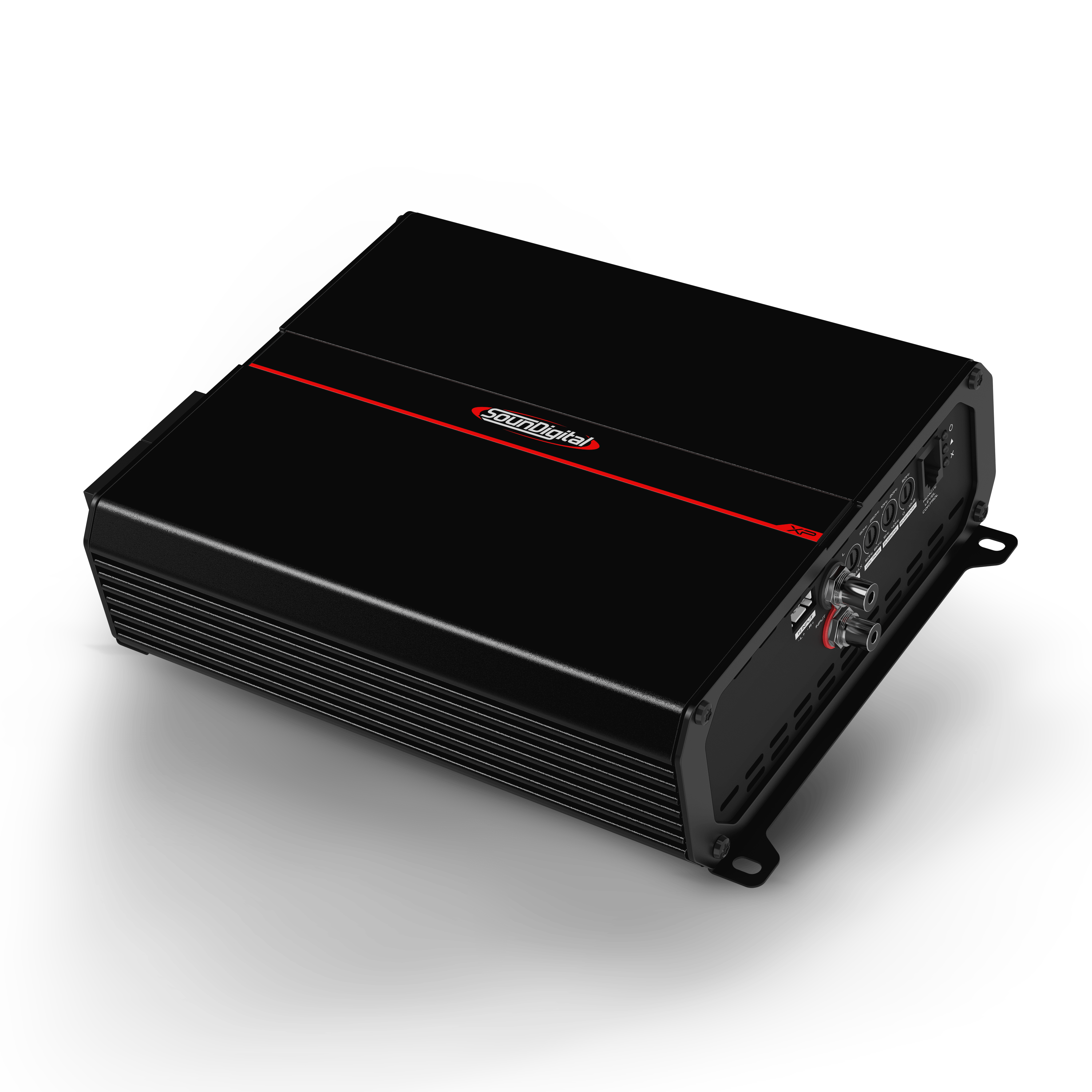

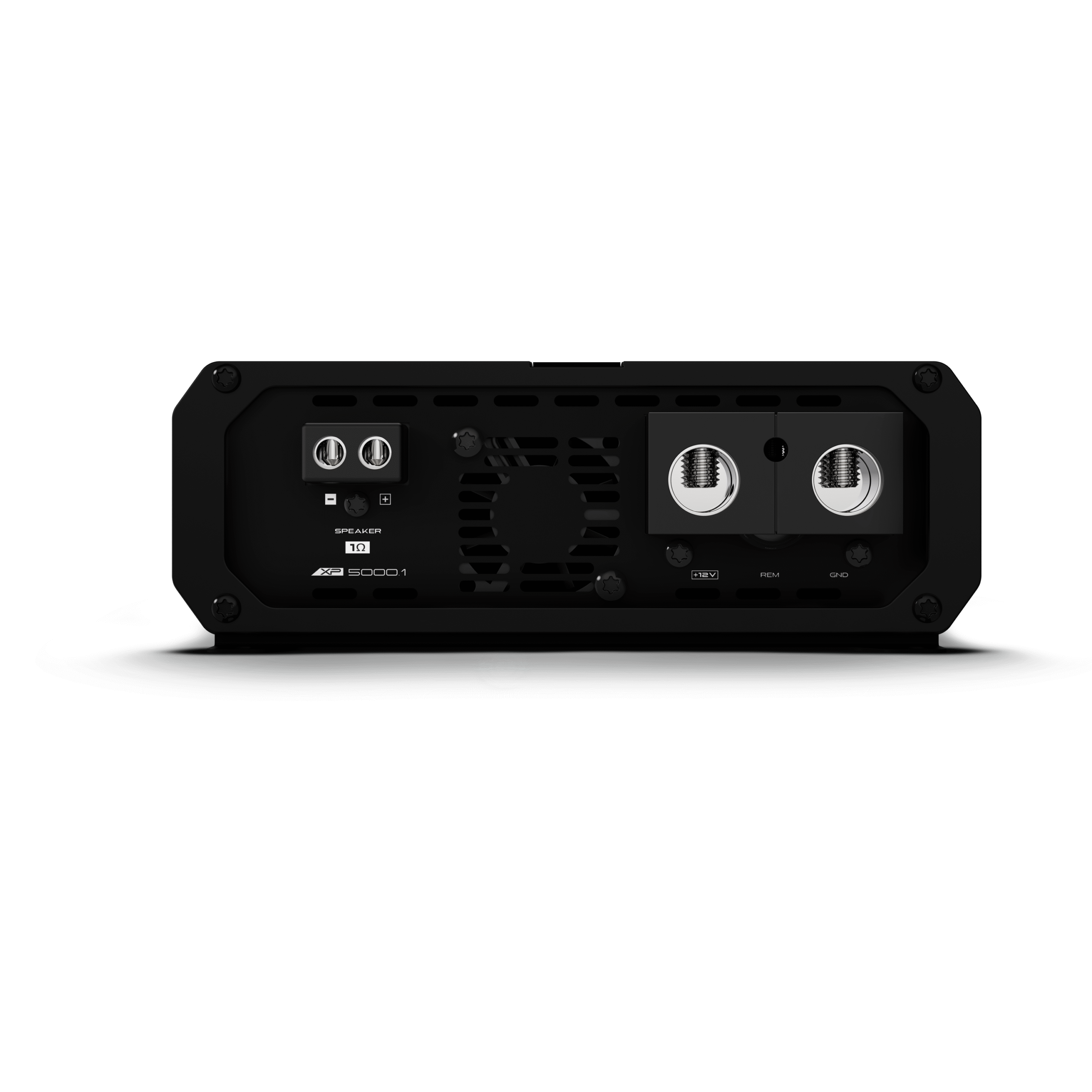

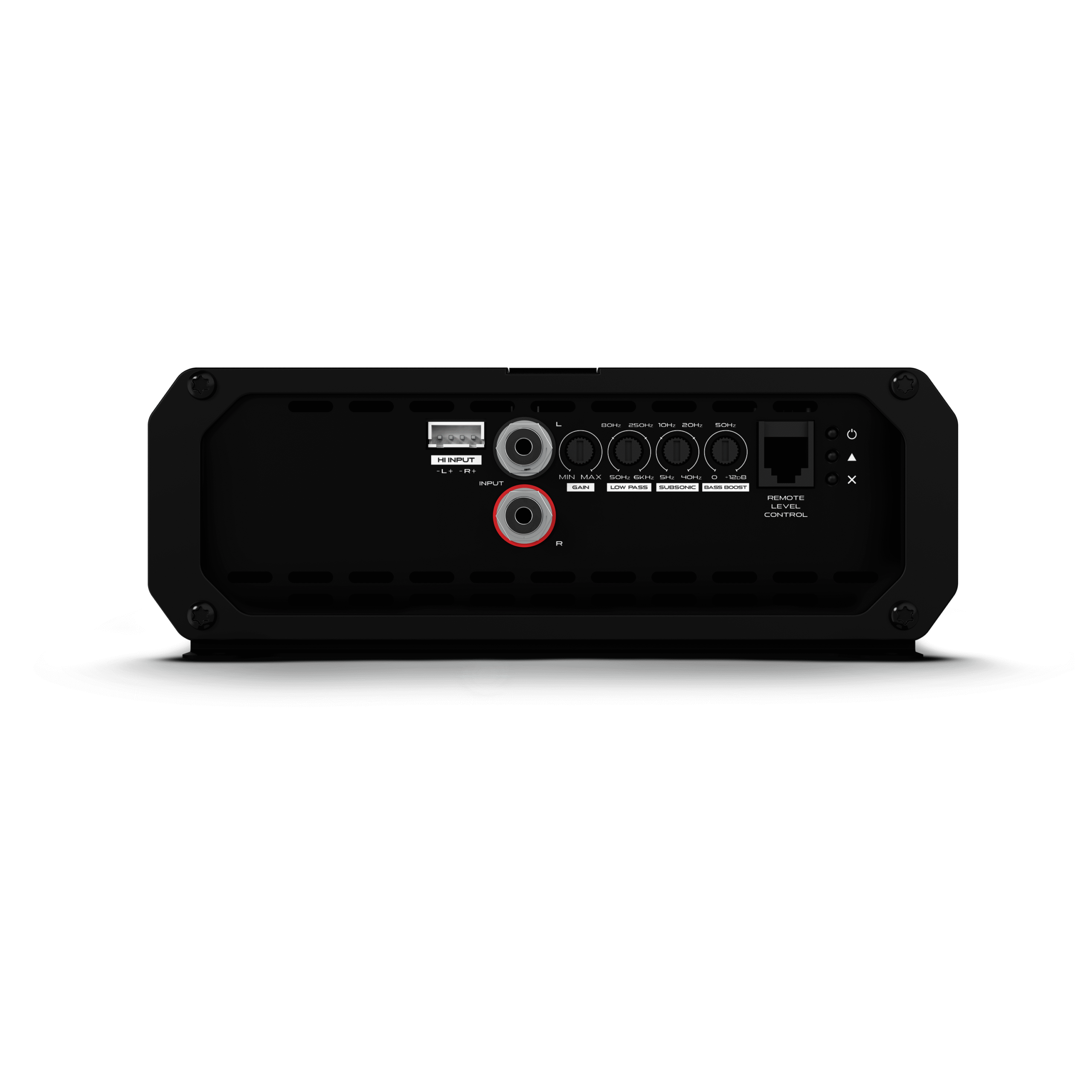

XP 5000.1
At the pinnacle of performance and innovation, we proudly present the XP line—an impressive evolution in your audio experience. Designed with state-of-the-art technology and enhanced by artificial intelligence, XP amplifiers embody the core DNA of SounDigital: innovation, excellence, and precision.
The XP line delivers exceptional audio performance, combining advanced engineering with superior components to ensure reliability and remarkably faithful sound clarity. Its compact and versatile design allows seamless integration into a wide range of applications, meeting diverse needs with efficiency and practicality.
Whether you’re an audiophile or a casual listener, XP amplifiers elevate your audio experience, striking the perfect balance between cutting-edge technology and exceptional quality. With the XP line, hear sound as it was meant to be heard.
Instruction manualGeneral Specifications
+
-
XP 5000.1 - 1 OHM
Power RMS @ 4Ω: 2250W
Power RMS @ 2Ω: 3350W
Power RMS @ 1Ω: 5000WXP 5000.1 - 2 OHM
Power RMS @ 4Ω: 3350W
Power RMS @ 2Ω: 5000W
Power RMS @ 1Ω: N/AFrequency Response (-3dB)
1Ω: 5Hz ~ 6kHz
2Ω: 5Hz ~ 6kHzSubsonic filter (12dB/oitava)
1Ω: 5Hz ~ 40Hz
2Ω: 5Hz ~ 40HzLow Pass filter (12dB/octave)
1Ω: 50Hz ~ 6kHz
2Ω: 50Hz ~ 6kHzBass Boost
1Ω: 0dB ~ 12dB @ 50Hz
2Ω: 0dB ~ 12dB @ 50HzOperating Voltage
1Ω: 9V ~ 16V
2Ω: 9V ~ 16VSNR
1Ω: 99dB
2Ω: 99dBInput Sensitivity (RCA)
1Ω: 0.2V ~ 2V
2Ω: 0.2V ~ 2VInput Sensitivity (High Level input)
1Ω: 1.5V ~ 15V
2Ω: 1.5V ~ 15VCurrent draw (music)
1Ω: 195A
2Ω: 195ACurrent draw (max.)
1Ω: 390A
2Ω: 390ADamping Factor (@100Hz nominal impedance)
1Ω: >3000
2Ω: >3000Power cable
1Ω: 70mm² (000 AWG)
2Ω: 70mm² (000 AWG)Speaker cable
1Ω: 2 x 16mm² (5 AWG)
2Ω: 2 x 16mm² (5 AWG)Remote cable
1Ω: 1.5mm² (15 AWG)
2Ω: 1.5mm² (15 AWG)Recommended Fuse* (music)
1Ω: 200A
2Ω: 200ARecommended battery (minimum)
1Ω: 200Ah
2Ω: 200AhWidth
9.41"
Length
7.10"
Height
2.52"
Weight
7.16 lb
