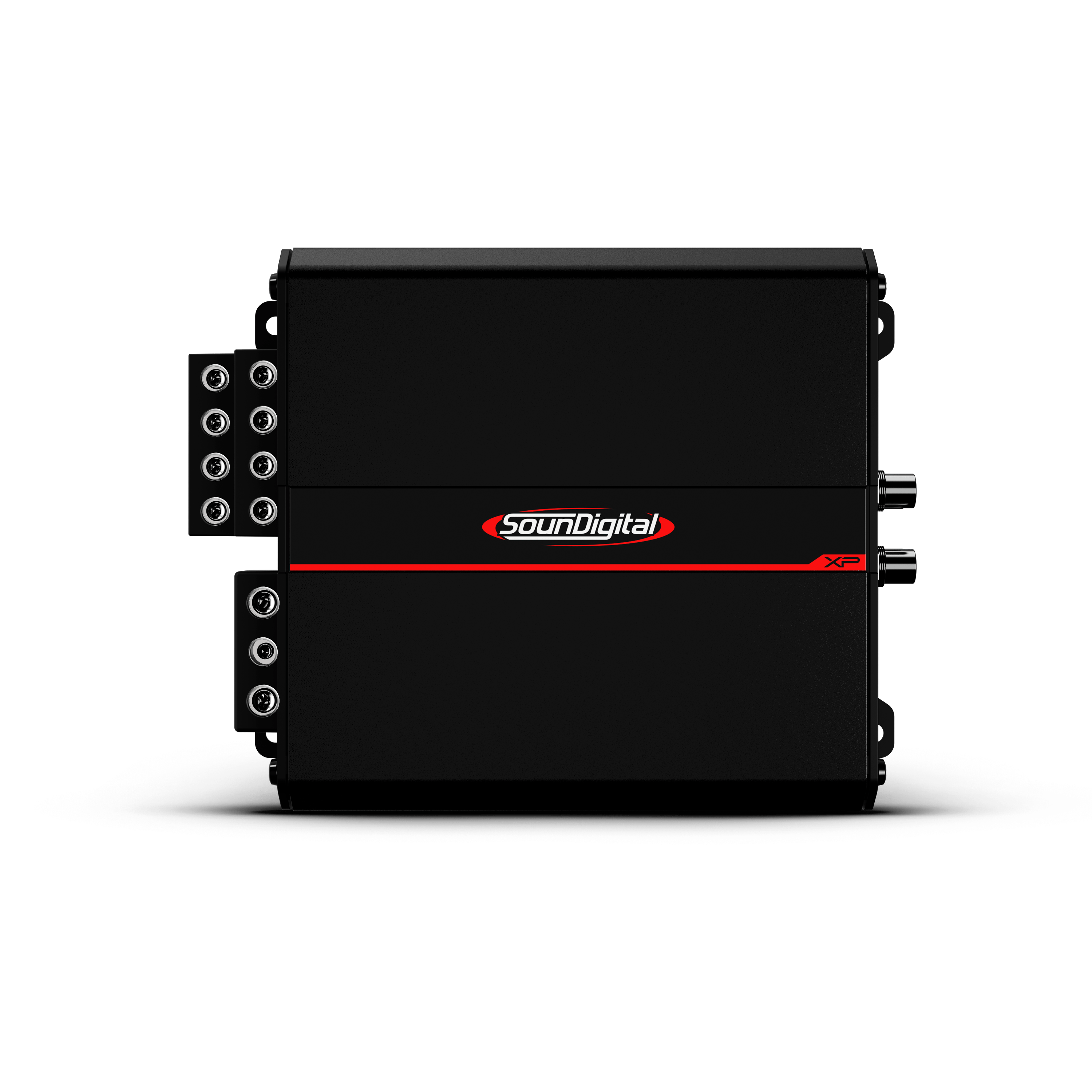

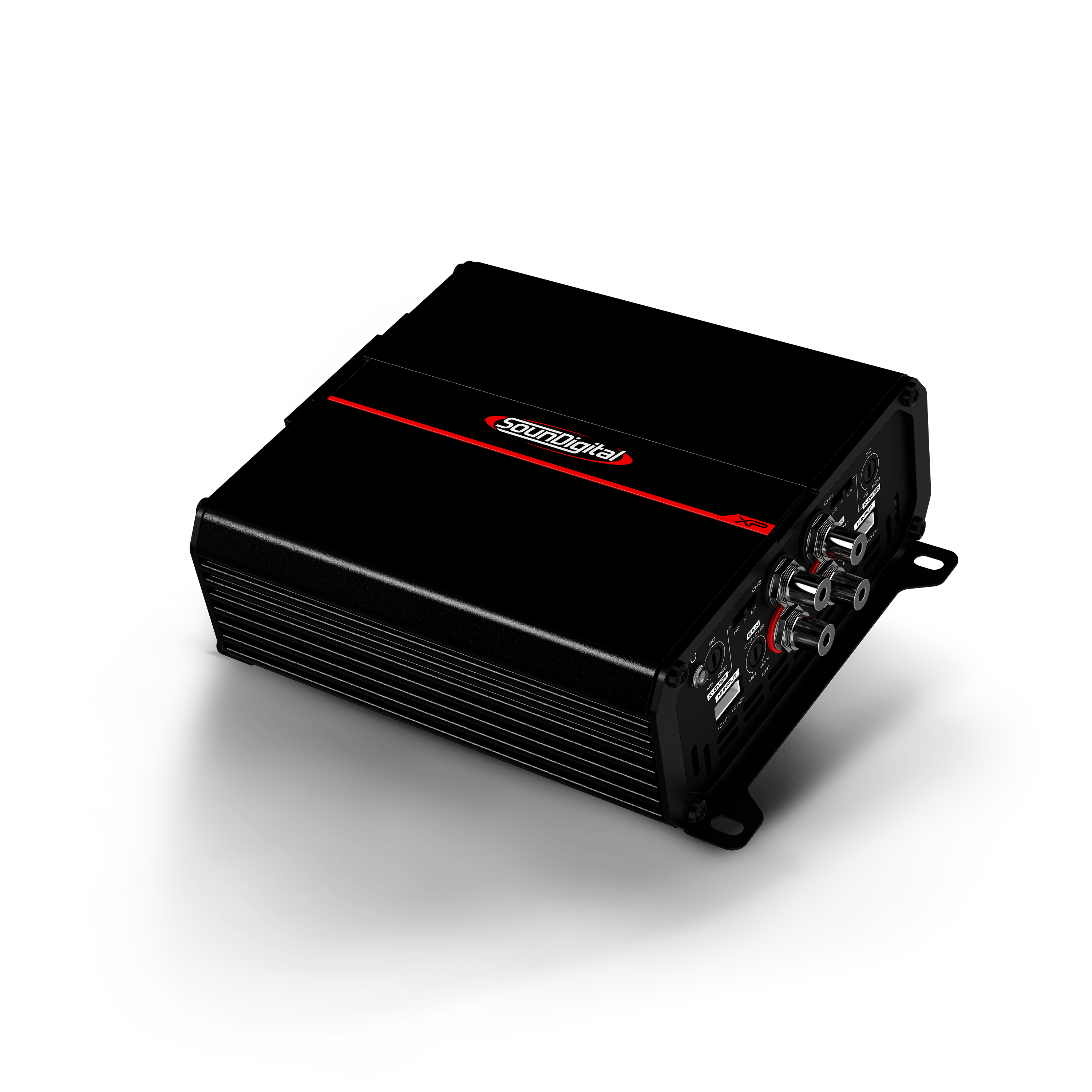

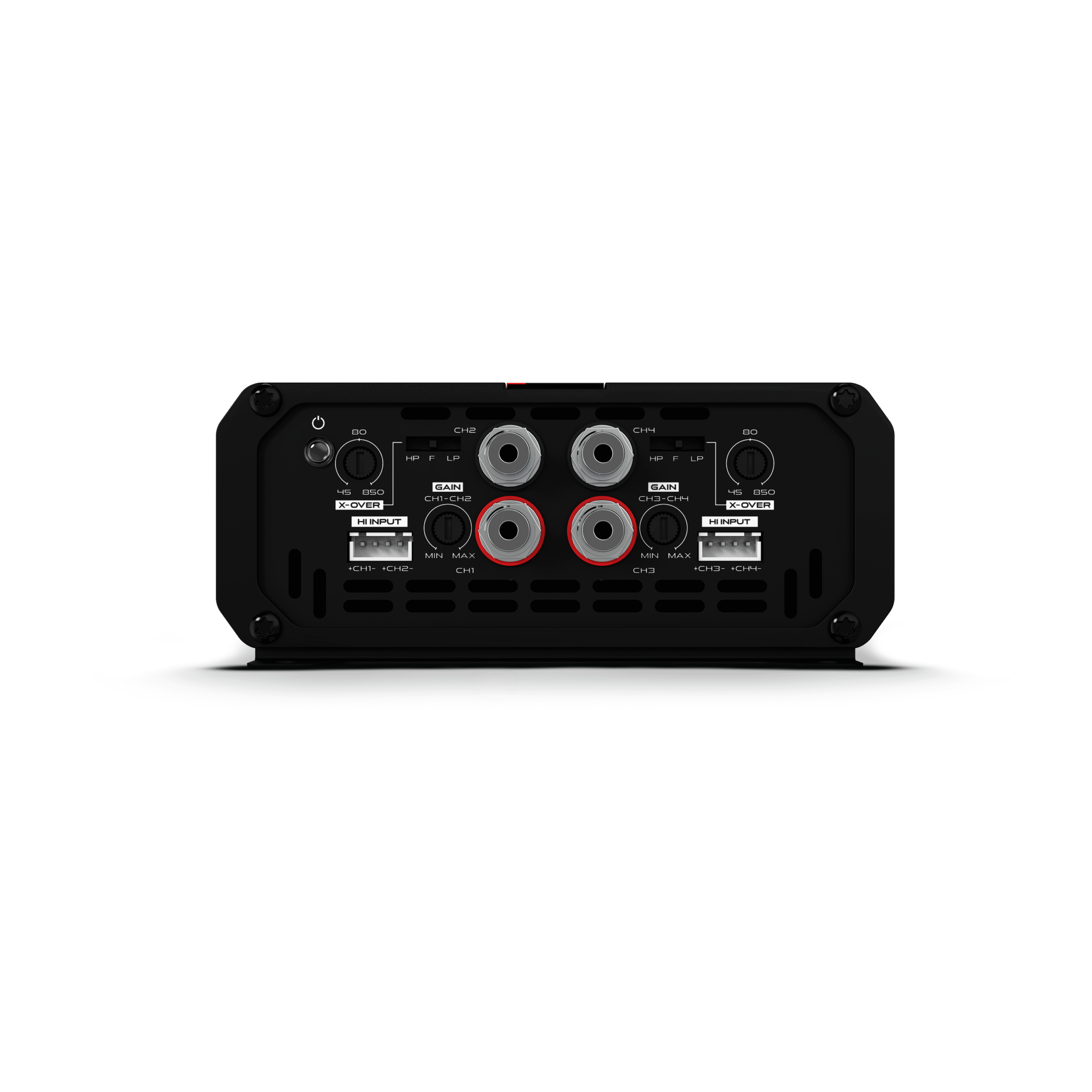

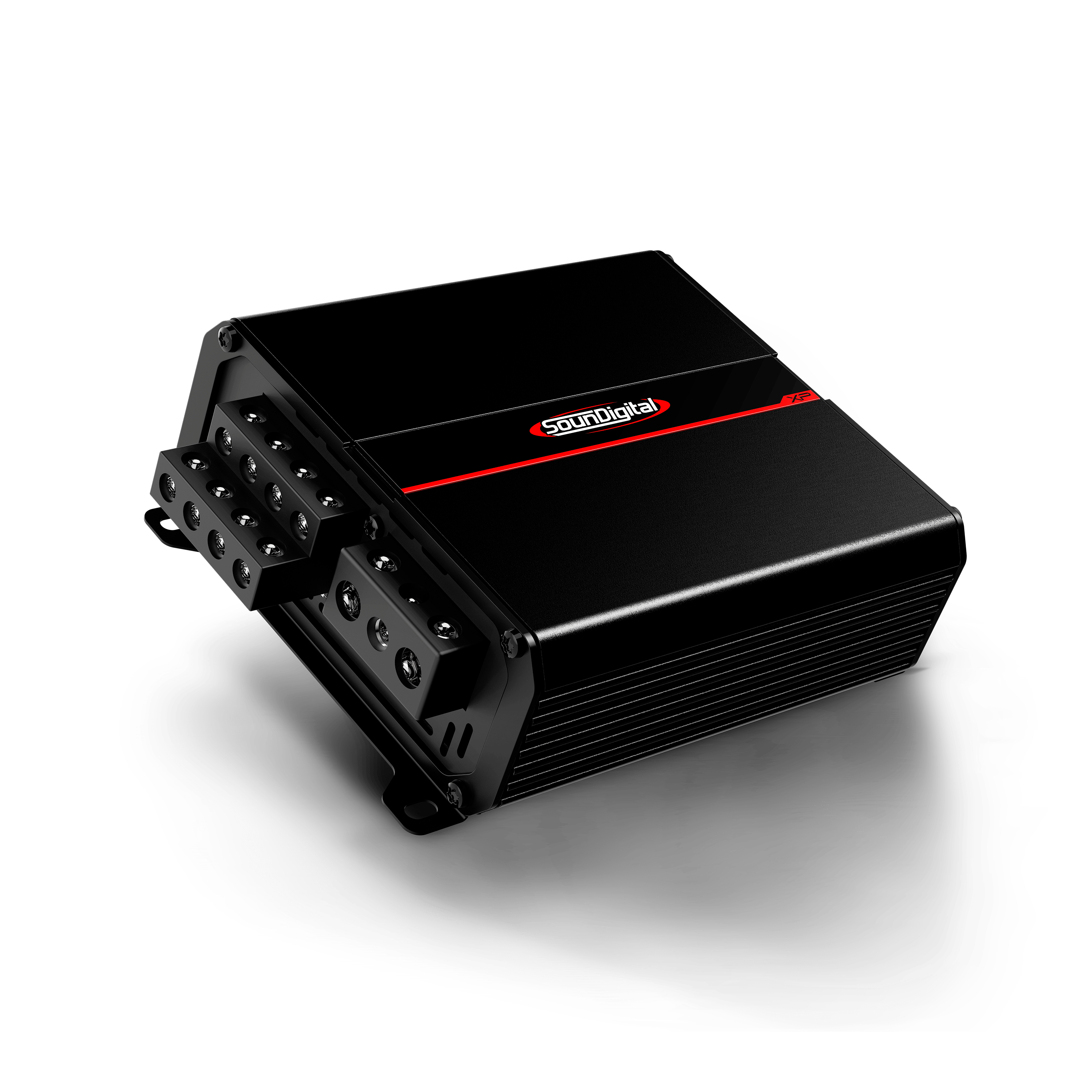

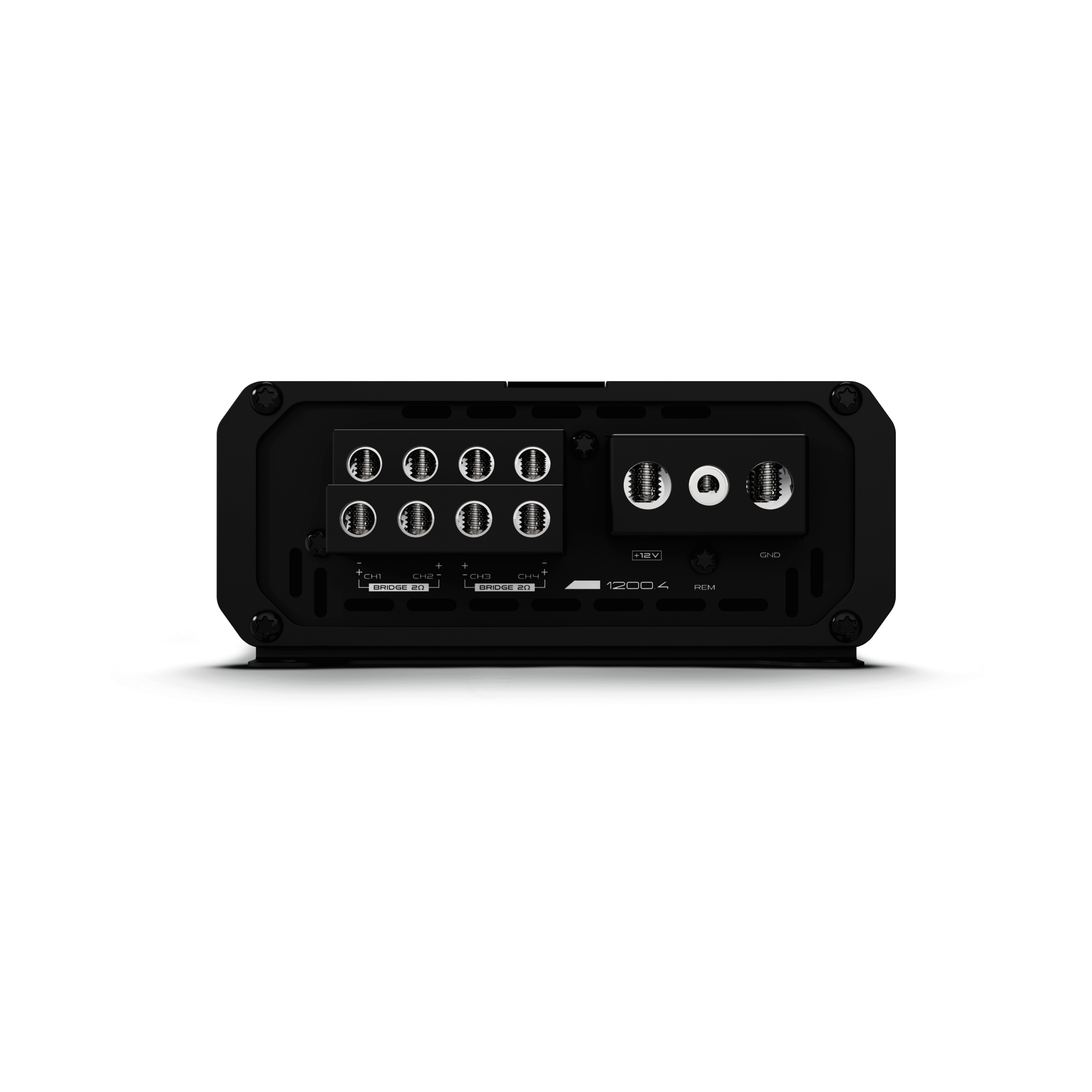

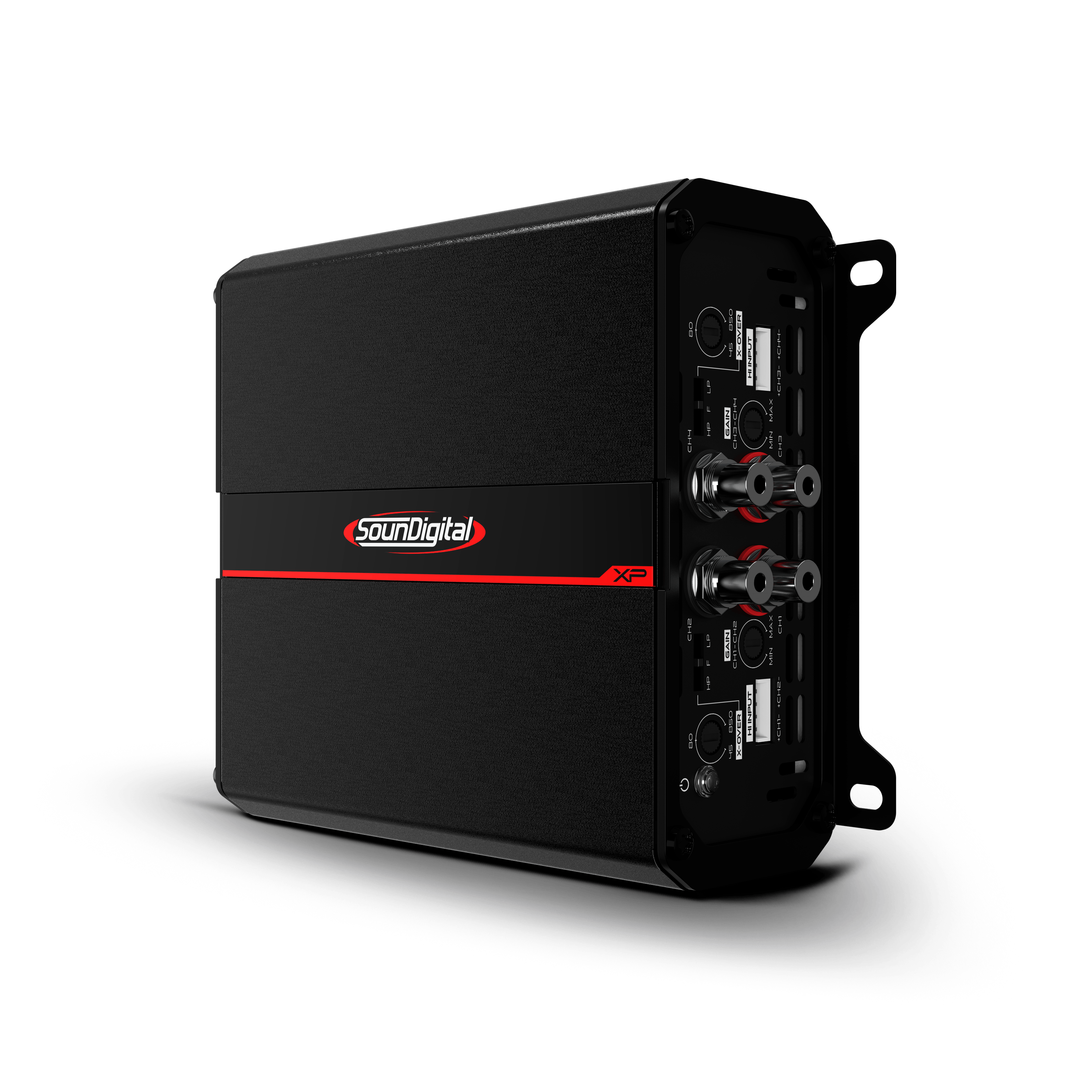

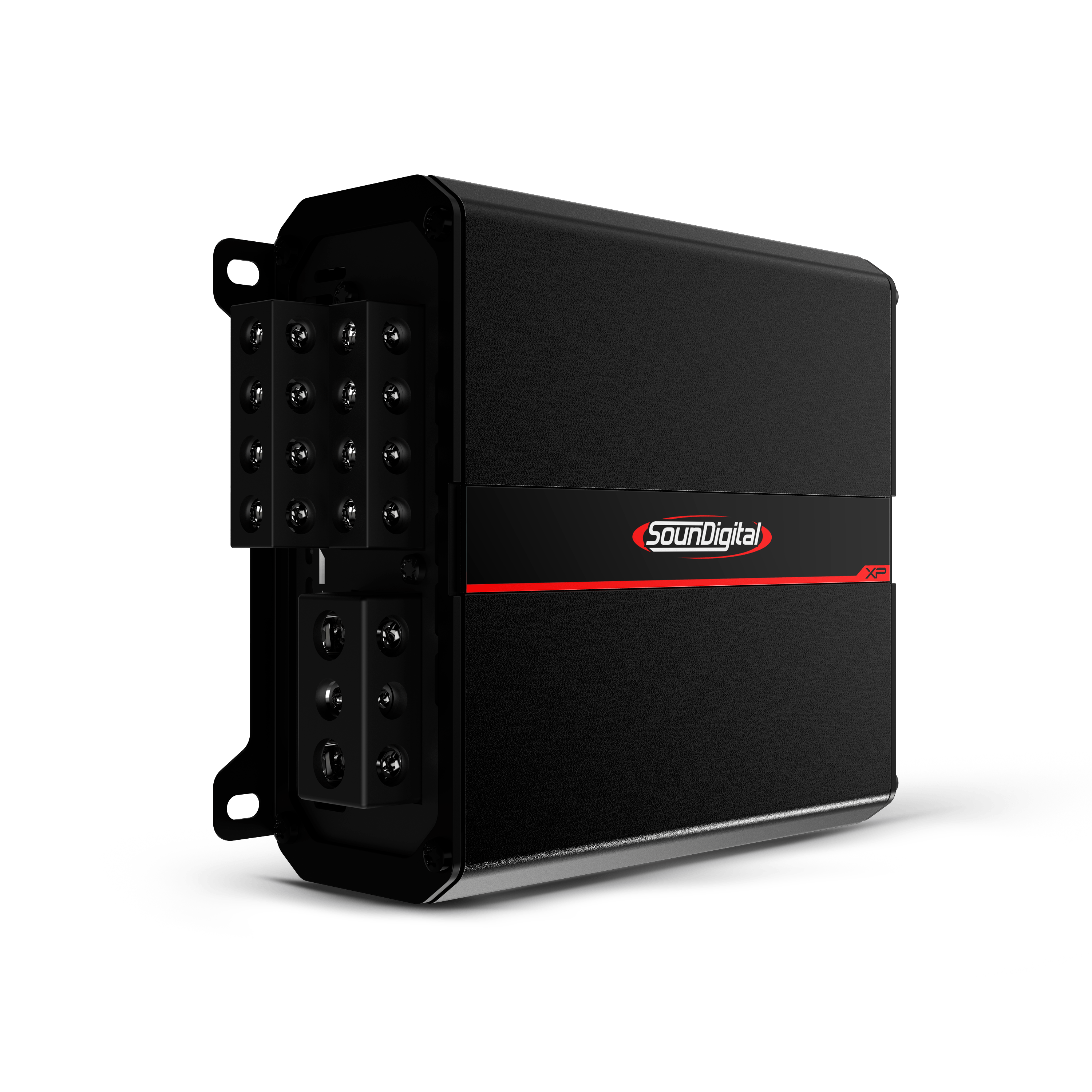

    XP 1200.4

    At the pinnacle of performance and innovation, we proudly present the XP line—an impressive evolution in your audio experience. Designed with state-of-the-art technology and enhanced by artificial intelligence, XP amplifiers embody the core DNA of SounDigital: innovation, excellence, and precision.

    The XP line delivers exceptional audio performance, combining advanced engineering with superior components to ensure reliability and remarkably faithful sound clarity. Its compact and versatile design allows seamless integration into a wide range of applications, meeting diverse needs with efficiency and practicality.

    Whether you’re an audiophile or a casual listener, XP amplifiers elevate your audio experience, striking the perfect balance between cutting-edge technology and exceptional quality. With the XP line, hear sound as it was meant to be heard.

    Instruction manual

    General Specifications

    +

    -

    • XP 1200.4 - 2 OHMS

      Power RMS @ 4Ω: 4 x 131W
      Power RMS @ 2Ω: 4 x 198W
      Power RMS @ 1Ω: 4 x 300W

      Power RMS (Bridge) @ 4Ω: 2 x 396W
      Power RMS (Bridge) @ 2Ω: 2 x 600W

    • XP 1200.4 - 4 OHMS

      Power RMS @ 4Ω: 4 x 198W
      Power RMS @ 2Ω: 4 x 300W
      Power RMS @ 1Ω: N/A

      Power RMS (Bridge) @ 4Ω: 2 x 600W
      Power RMS (Bridge) @ 2Ω: N/A

    • Frequency Response (-3dB)

      2Ω: 5Hz ~ 23kHz
      4Ω: 5Hz ~ 38kHz

    • High Pass filter (12dB/octave)

      2Ω: 45Hz ~ 850Hz
      4Ω: 45Hz ~ 850Hz

    • Low Pass filter (12dB/octave)

      2Ω: 45Hz ~ 850Hz
      4Ω: 45Hz ~ 850Hz

    • Bass Boost

      2Ω: N/A
      4Ω: N/A

    • Operating Voltage

      2Ω: 9V ~ 16V
      4Ω: 9V ~ 16V

    • SNR

      2Ω: 102dB
      4Ω: 104dB

    • Input Sensitivity (RCA)

      2Ω: 0.2V ~ 2V
      4Ω: 0.2V ~ 2V

    • Input Sensitivity (High Level input)

      2Ω: 1.5V ~ 15V
      4Ω: 1.5V ~ 15V

    • Current draw (music)

      2Ω: 48A
      4Ω: 48A

    • Current draw (max.)

      2Ω: 95A
      4Ω: 96A

    • Total Efficiency

      2Ω: 85%
      4Ω: 85%

    • Damping Factor (@100Hz nominal impedance)

      2Ω: 200
      4Ω: 200

    • Power cable

      2Ω: 16mm² (5 AWG)
      4Ω: 16mm² (5 AWG)

    • Speaker cable

      2Ω: 2 x 2.5mm² (13 AWG)
      4Ω: 2 x 2.5mm² (13 AWG)

    • Remote cable

      2Ω: 1.5mm² (15 AWG)
      4Ω: 1.5mm² (15 AWG)

    • Recommended Fuse* (music)

      2Ω: 60A
      4Ω: 60A

    • Recommended battery (minimum)

      2Ω: 60Ah
      4Ω: 60Ah

    • Width

      7.09"

    • Length

      5.35''

    • Height

      2.22''

    • Weight

      3.24 lb
