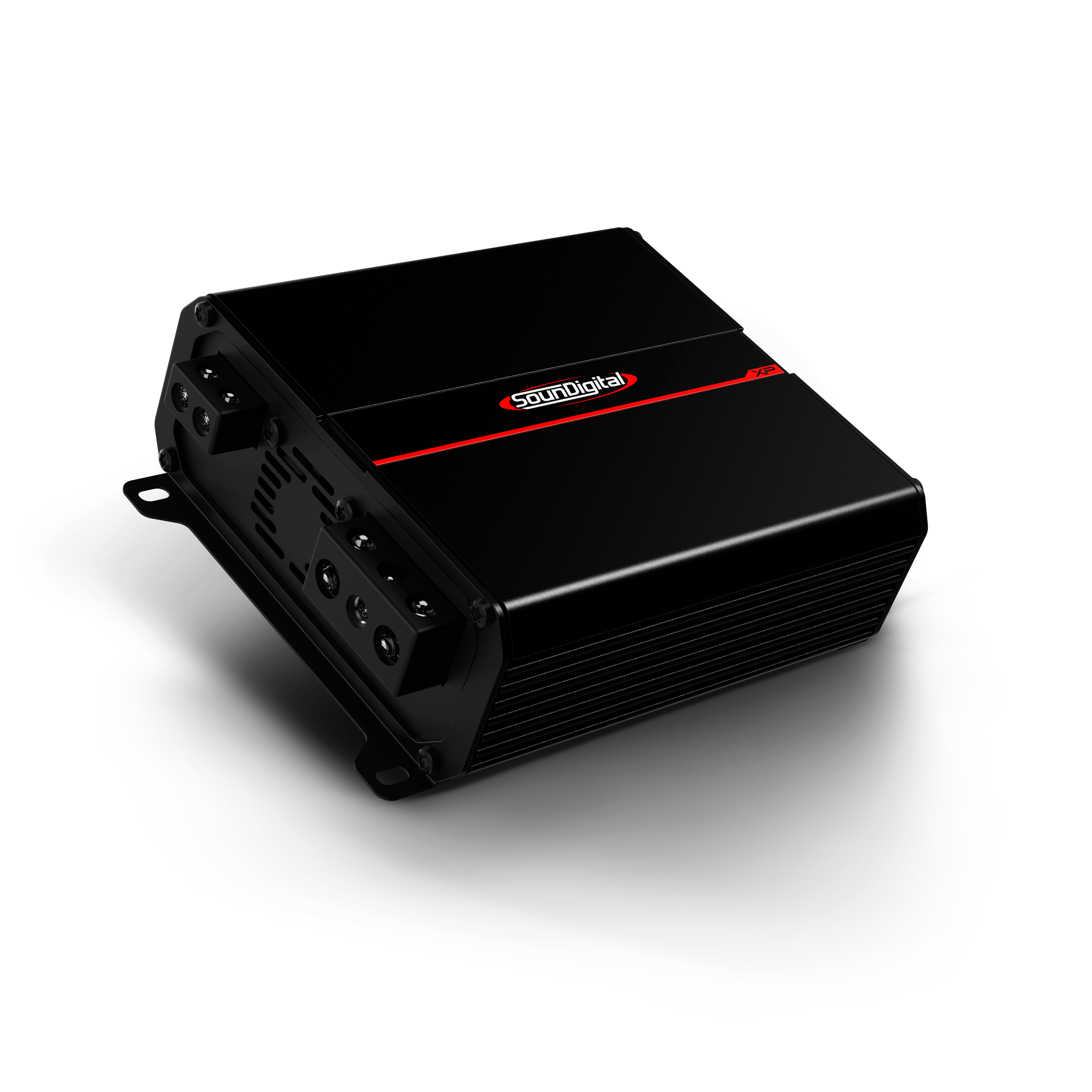

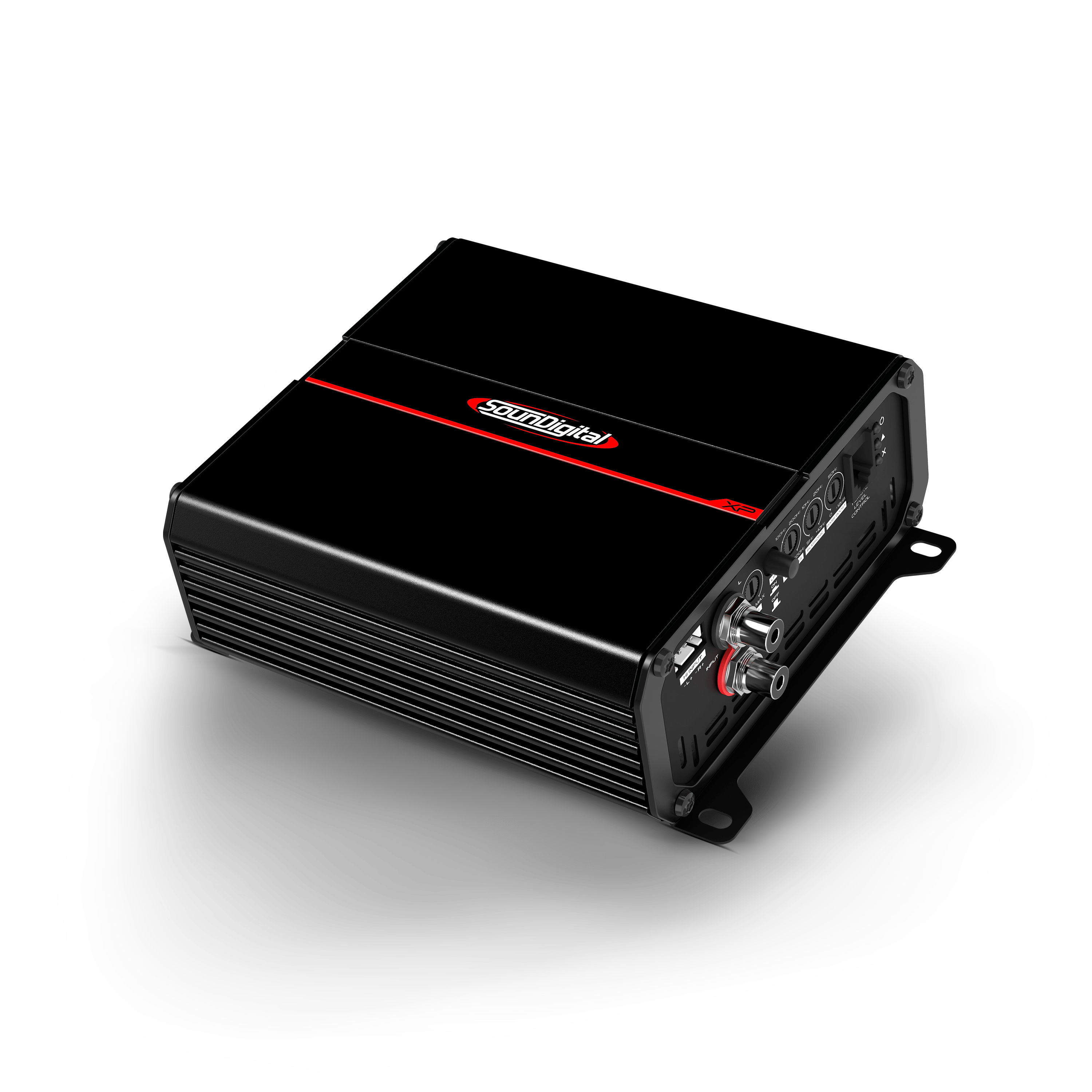

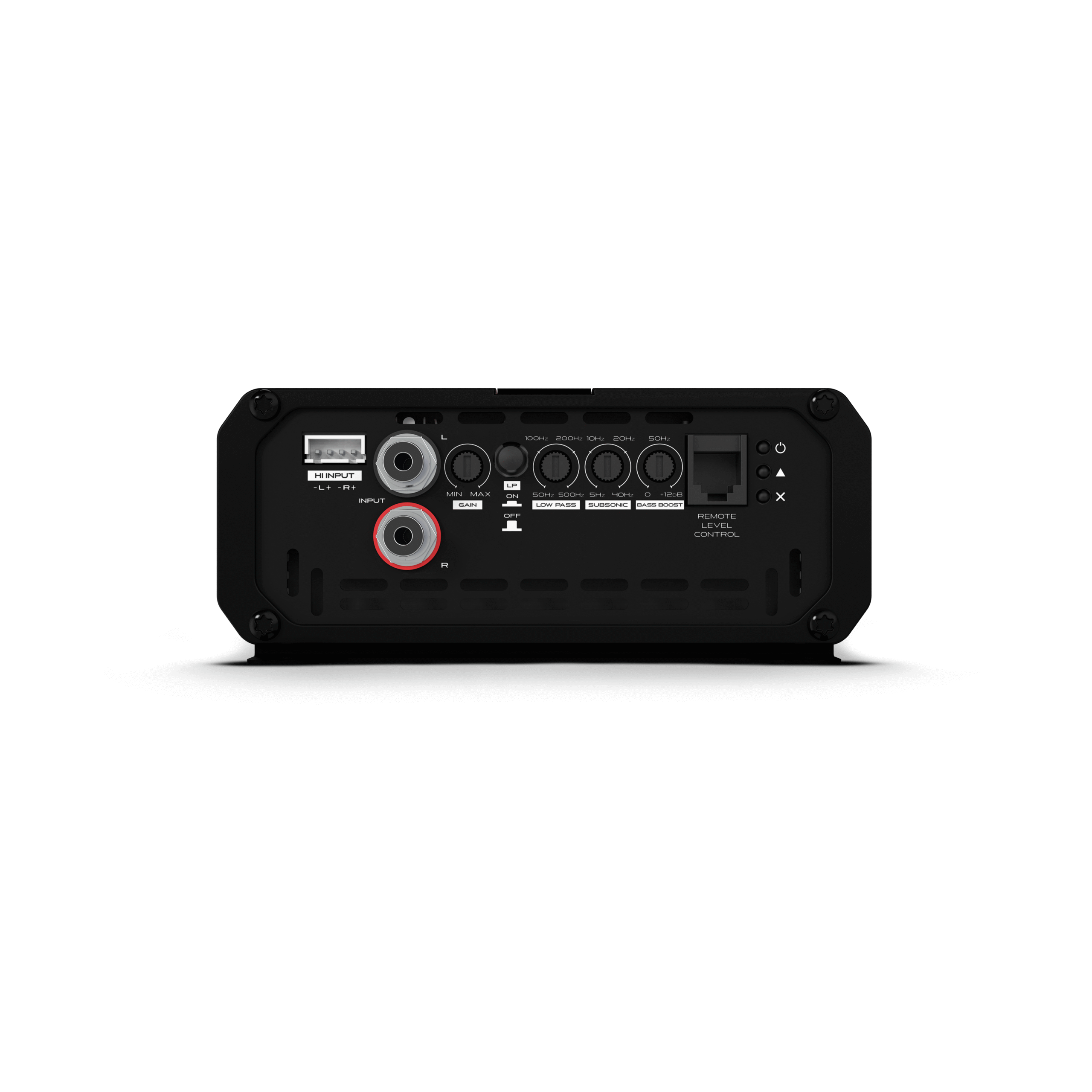

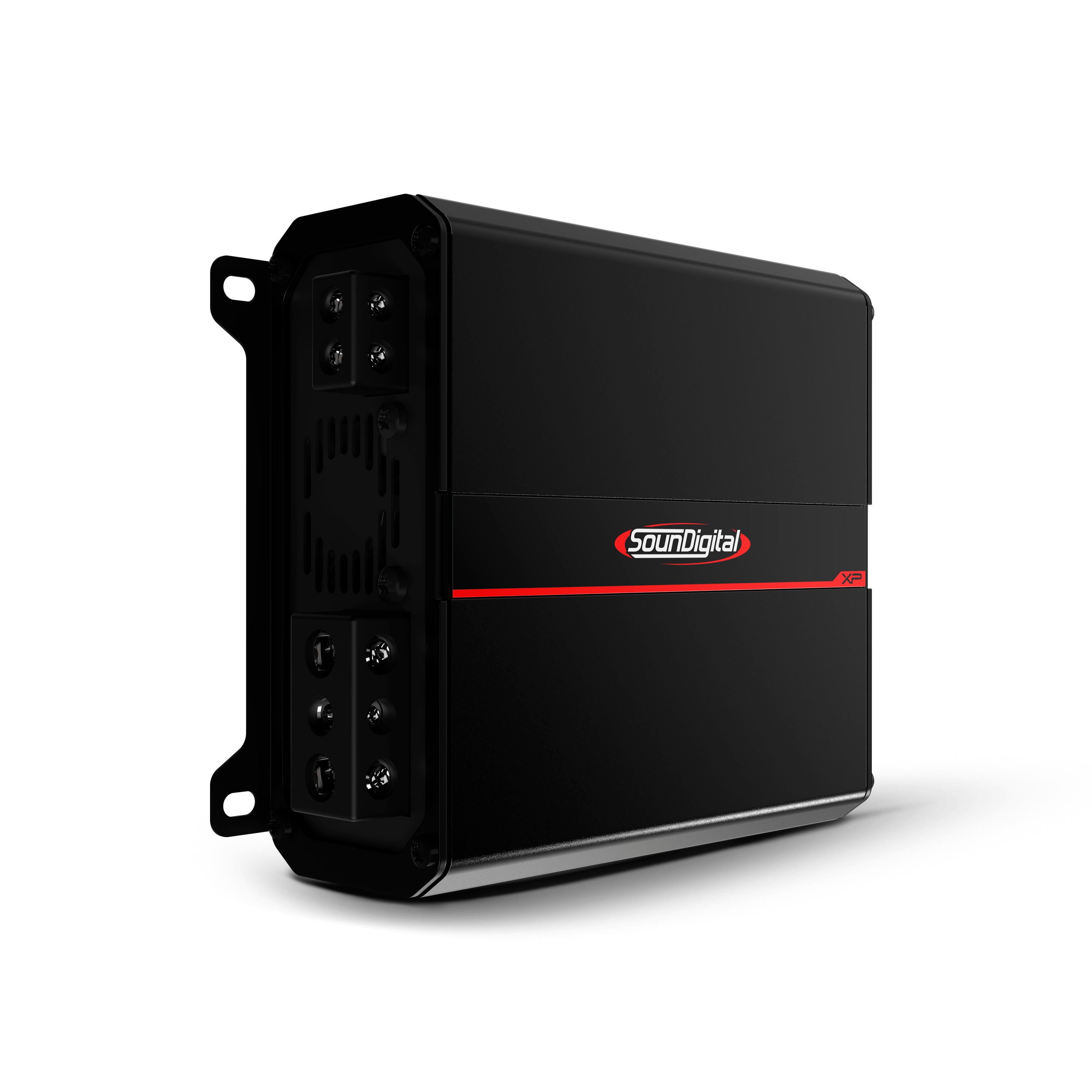

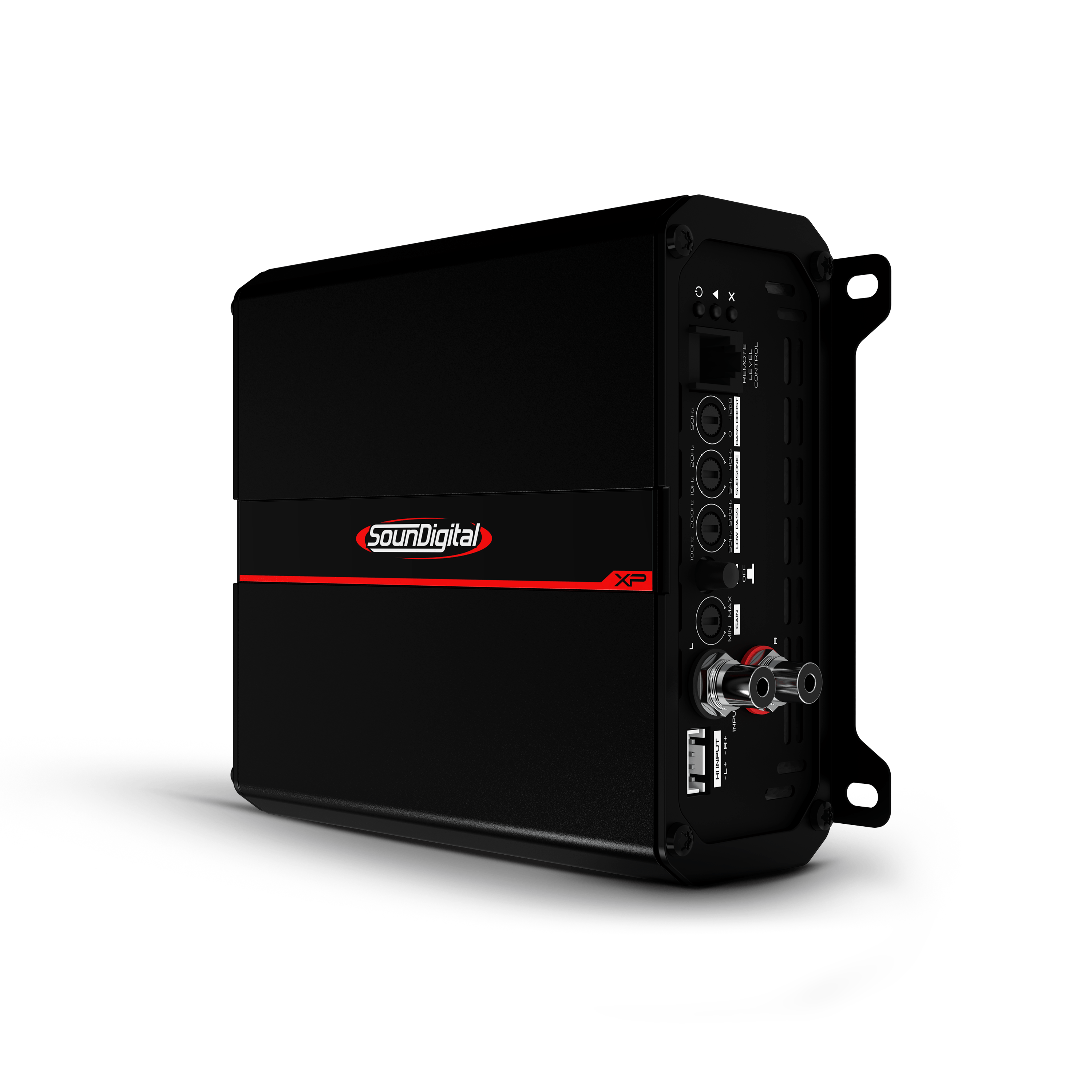

XP 1000.1
At the pinnacle of performance and innovation, we proudly present the XP line—an impressive evolution in your audio experience. Designed with state-of-the-art technology and enhanced by artificial intelligence, XP amplifiers embody the core DNA of SounDigital: innovation, excellence, and precision.
The XP line delivers exceptional audio performance, combining advanced engineering with superior components to ensure reliability and remarkably faithful sound clarity. Its compact and versatile design allows seamless integration into a wide range of applications, meeting diverse needs with efficiency and practicality.
Whether you’re an audiophile or a casual listener, XP amplifiers elevate your audio experience, striking the perfect balance between cutting-edge technology and exceptional quality. With the XP line, hear sound as it was meant to be heard.
Instruction manualGeneral Specifications
+
-
XP 1000.1 - 1 OHM
Power RMS @ 4Ω: 476W
Power RMS @ 2Ω: 721W
Power RMS @ 1Ω: 1000WXP 1000.1 - 2 OHMS
Power RMS @ 4Ω: 739W
Power RMS @ 2Ω: 1000W
Power RMS @ 1Ω: N/AFrequency Response (-3dB)
1Ω: 5Hz ~ 25kHz
2Ω: 5Hz ~ 25kHzSubsonic filter (12dB/oitava)
1Ω: 5Hz ~ 40Hz
2Ω: 5Hz ~ 40HzLow Pass filter (12dB/octave)
1Ω: 50Hz ~ 500Hz
2Ω: 50Hz ~ 500HzBass Boost
1Ω: 0dB ~ 12dB @ 50Hz
2Ω: 0dB ~ 12dB @ 50HzOperating Voltage
1Ω: 9V ~ 16V
2Ω: 9V ~ 16VSNR
1Ω: 94dB
2Ω: 94dBInput Sensitivity (RCA)
1Ω: 0.2V ~ 2V
2Ω: 0.2V ~ 2VInput Sensitivity (High Level input)
1Ω: 1.5V ~ 15V
2Ω: 1.5V ~ 15VCurrent draw (music)
1Ω: 43A
2Ω: 43ACurrent draw (max.)
1Ω: 86A
2Ω: 86ATotal Efficiency
1Ω: 89%
2Ω: 86%Damping Factor (@100Hz nominal impedance)
1Ω: >3000
2Ω: >3000Power cable
1Ω: 16mm² (5 AWG)
2Ω: 16mm² (5 AWG)Speaker cable
1Ω: 2 x 4mm² (11 AWG)
2Ω: 2 x 4mm² (11 AWG)Remote cable
1Ω: 1.5mm² (15 AWG)
2Ω: 1.5mm² (15 AWG)Recommended Fuse* (music)
1Ω: 50A
2Ω: 50ARecommended battery (minimum)
1Ω: 50Ah
2Ω: 50AhWidth
6.62"
Length
5.35''
Height
2.22''
Weight
3.39 ib
