400.4 EVOX

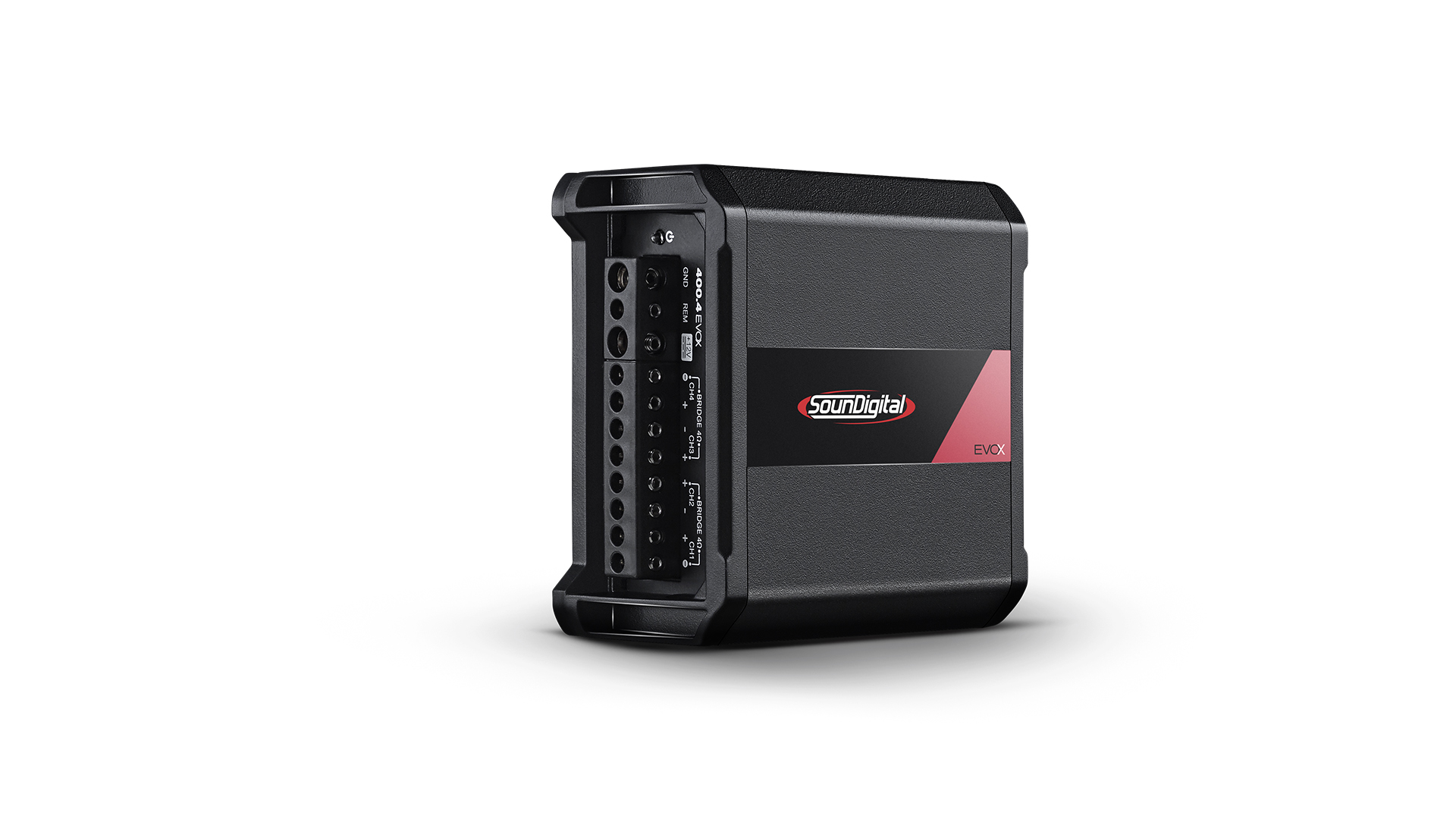

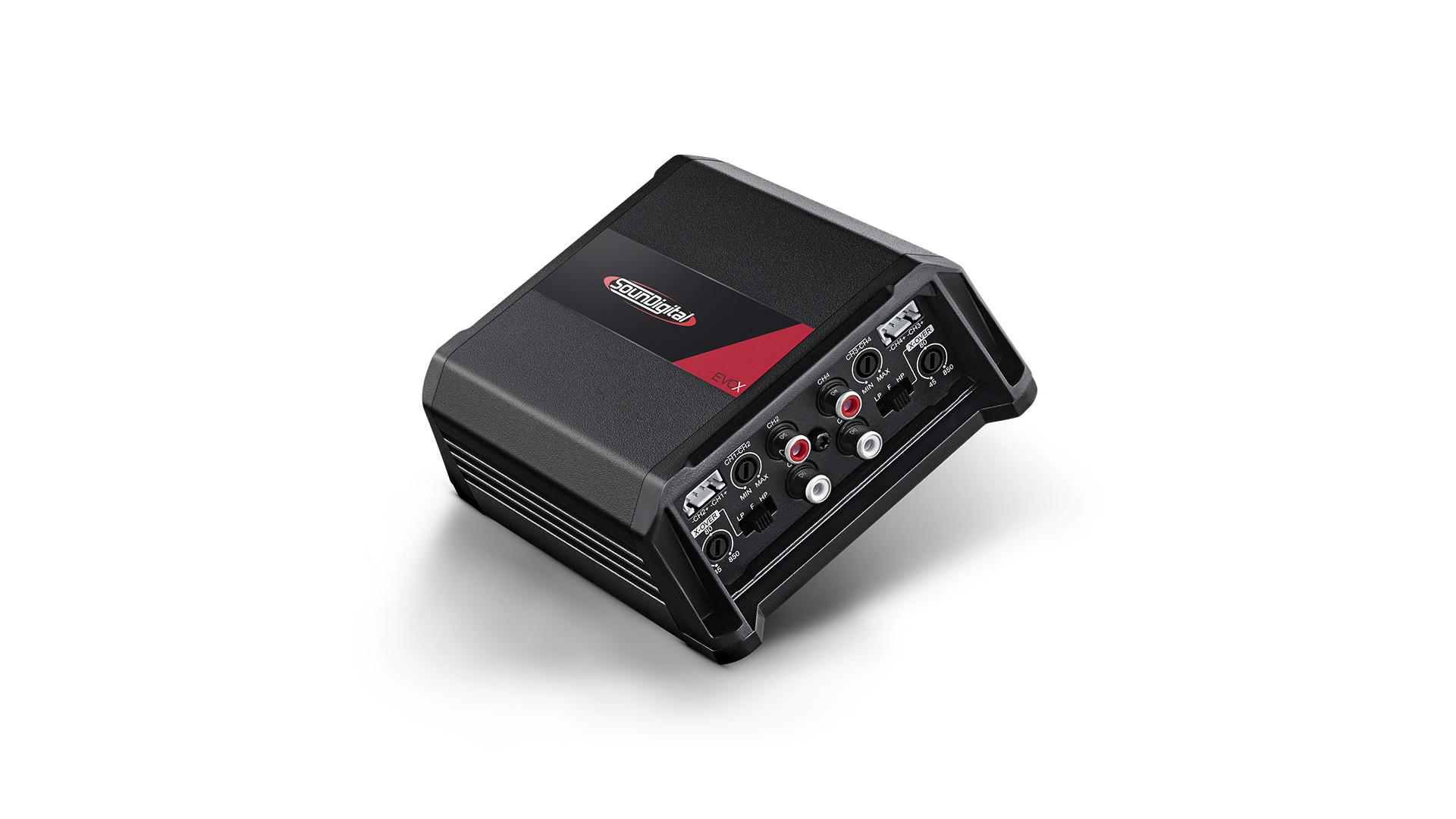

The 400.4 EVOX is a compact, modern amplifier that delivers 400W RMS of power distributed over 4 channels.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Instruction manualGeneral Specifications
+
-
400.4 EVOX – 4 OHMS
Power @ 1Ω: N/A
Power @ 2Ω: 4 X 100W RMS
Power @ 4Ω: 4 X 66W RMS
Bridge Power @ 2Ω: N/A
Bridge Power @ 4Ω: 2 X 200 WRMSOperating Voltage:
8V – 16V
Current Draw (Music):
19A
Current Draw (Max):
39A
Recommended Fuse (Music):
20A
Total Efficiency:
82%
Damping Factor:
200
Frequency Response (-3dB):
5Hz – 22kHz
Crossover
LPF / HPF: 45Hz – 850Hz
SNR:
88dB
Width:
4.4 in / 11,3 cm
Length:
4.3 in / 10,9 cm
Height:
2.0 in / 5,1 cm
Weight:
0,47 Kg
