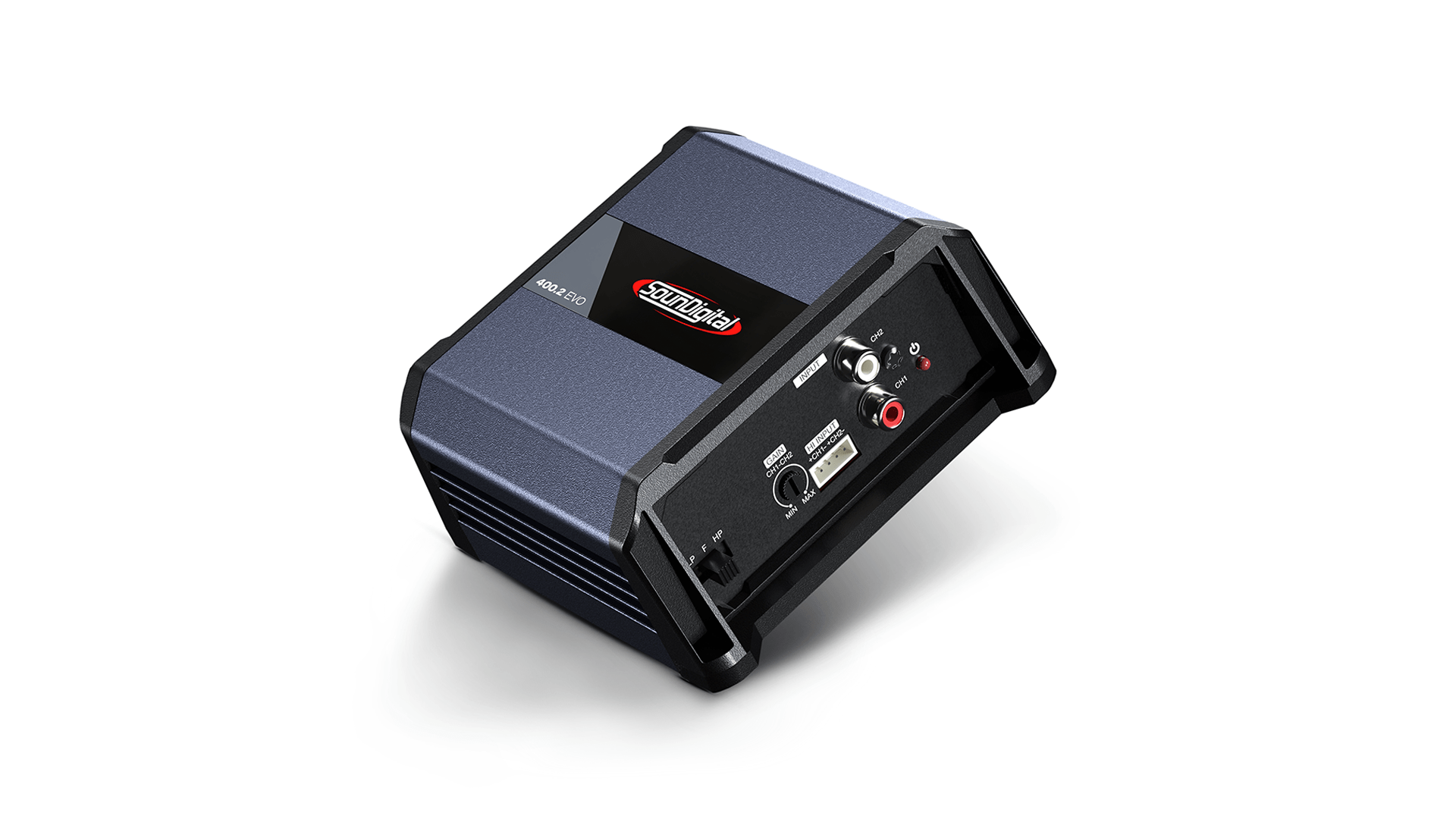

400.2 EVO 4.0
The 400.2 EVO 4.0 is a compact, modern amplifier that delivers 400W RMS of power distributed over 2 channels.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Available in:
Instruction manualGeneral Specifications
+
-
400.2 EVO 4.0 – 4 OHMS
Power @ 1Ω: N/A
Power @ 2Ω: 2 X 200W RMS
Power @ 4Ω: 2 X 132W RMS
Bridge Power @ 2Ω: N/A
Bridge Power @ 4Ω: 1 X 400W RMSOperating Voltage:
8V – 16V
Current Draw (Music):
18A
Current Draw (Max):
36A
Recommended Fuse (Music):
20A
Total Efficiency:
88%
Damping Factor:
200
Frequency Response (-3dB):
10Hz – 20kHz
SNR:
88dB
Crossover
LPF / HPF: 80Hz
Width:
4.4 in / 11,3 cm
Length:
4.7 in / 12,1 cm
Height:
2.0 in / 5,1 cm
Weight:
0,48 Kg
