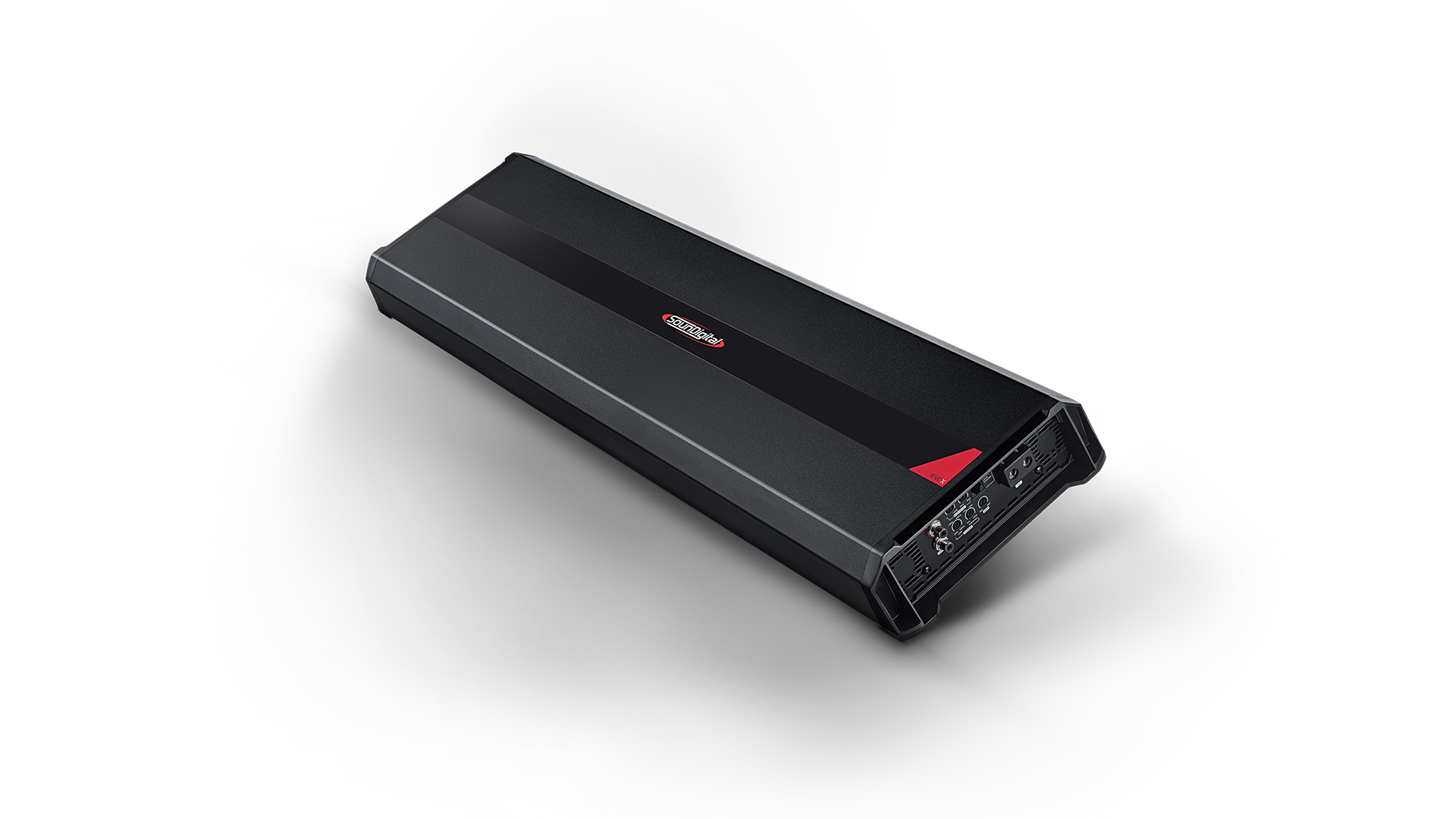

20000.1 EVOX
The 20000.1 EVOX is a compact, modern amplifier that delivers 20000W RMS of power over 1 channel.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Available in:
Instruction manualGeneral Specifications
+
-
20000.1 EVOX – 1 OHM
Power @ 4Ω: 1 X 8712W RMS
Power @ 2Ω: 1 X 13200W RMS
Power @ 1Ω: 1 X 20000W RMSFrequency Response (-3dB):
5Hz ~ 500Hz
High Pass Filter (12dB/octave):
3Hz ~ 30Hz
Low Pass Filter (12dB/octave):
50Hz ~ 500Hz
Bass Boost Level:
0dB ~ +12dB
Bass Boost Frequency
35Hz ~ 55Hz
Operating Voltage:
9V ~ 16V
SNR:
76dB
Input Sensitivity (RCA):
0.8V ~ 4V
Current Draw (music):
980A
Current Draw (max):
1960A
Total Efficiency:
71%
Damping Factor (@100Hz nominal impedance):
200
Power Cable:
90mm² (000 AWG)
Speaker Cable:
2 x 21mm² (4 AWG)
Remote Cable:
1.5mm² (15 AWG)
Recommended Fuse (music):
1000A
Recommended Battery (minimum):
1000Ah
Width:
8.9 in / 20.4 cm
Length:
34 in / 86.3 cm
Height:
2.8 in / 7.1 cm
Weight:
14.64 kg / 32.27 lb
