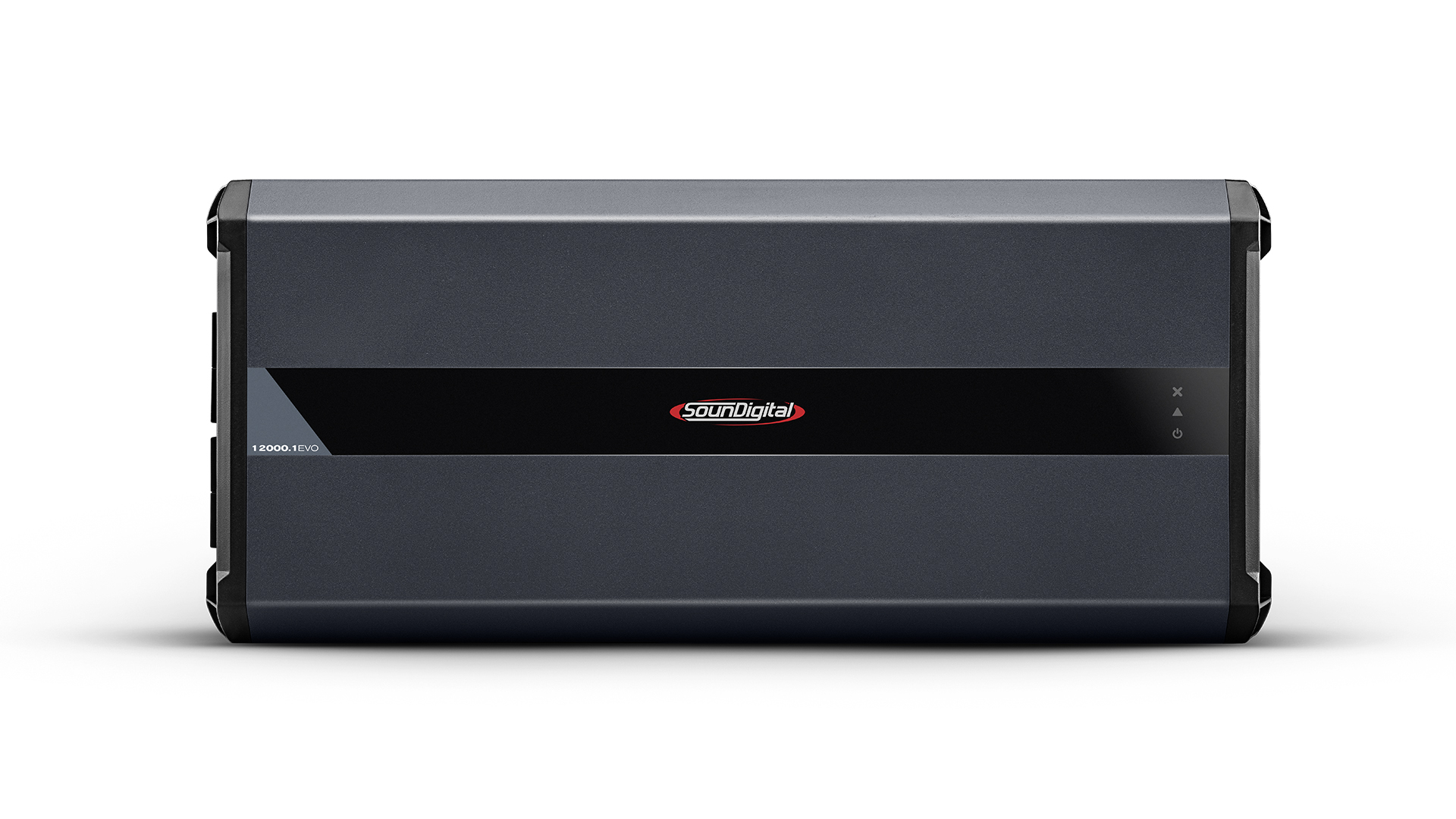

12000.1 EVO 4.0
The 12000.1 EVO 4.0 is a compact and modern amplifier that delivers 12000W RMS of power over 1 channel.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Available in versions:
Instruction manualGeneral Specifications
+
-
12000.1 EVO 4.0 – 1 OHM
Power @ 1Ω: 1 X 12000W RMS
Power @ 2Ω: 1 X 7920W RMS
Power @ 4Ω: 1 X 5227W RMS12000.1 EVO 4.0 – 2 OHMS
Power @ 1Ω: N/A
Power @ 2Ω: 1 X 12000W RMS
Power @ 4Ω: 1 X 7920W RMSFrequency Response (-3dB):
5Hz ~ 6kHz
High Pass Filter (12dB/octave):
5Hz ~ 80Hz
Low Pass Filter (12dB/octave):
50Hz ~ 6kHz
Bass Boost:
0dB ~ 12dB @ 50Hz
Operating Voltage:
8V ~ 16V
SNR:
71dB
Input Sensitivity (RCA):
0.2V ~ 2V
Input Sensitivity (High Level input)
N/A
Current Draw (music):
643A
Current Draw (max.):
1287A
Total Efficiency:
74%
Damping Factor (@100Hz nominal impedance):
200
Power Cable:
95mm² (0000 AWG)
Speaker Cable
1Ω: 2 x 16mm² (5 AWG)
2Ω: 2 x 10mm² (7 AWG)Recommended Fuse (Music):
2 X 350A
Recommended Battery (minimum):
650Ah
Width:
8.9" / 22.4 cm
Length:
20.8" / 52.9 cm
Height:
2.8" / 7.1 cm
Weight:
7,3 kg (16.2 lb)
