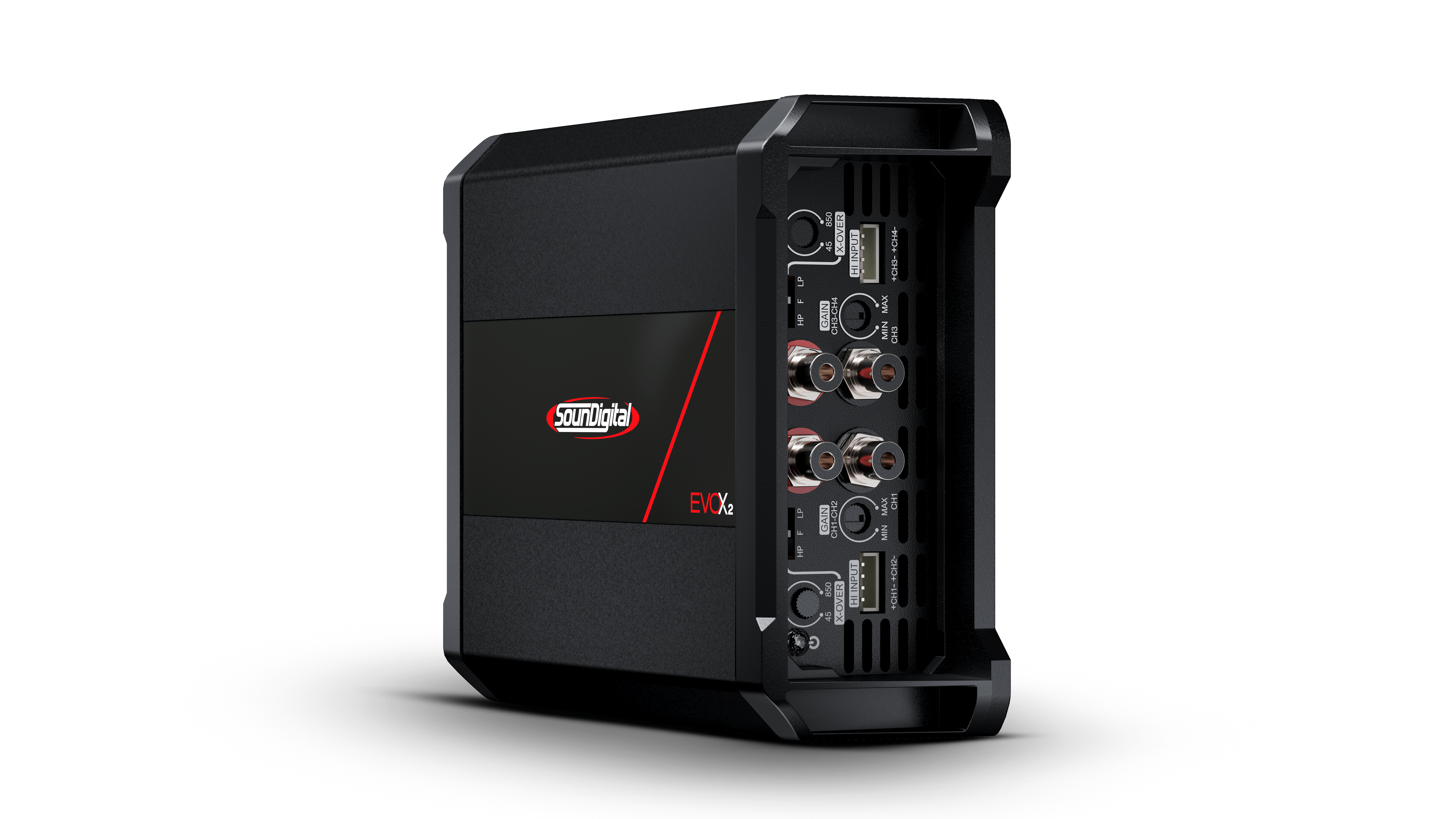

1200.4 EVOX2

The 1200.4 EVOX2 is a compact, modern amplifier that delivers 1200W RMS of power over 4 channels.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Available in versions:

Instruction manual

General Specifications

1200.4 EVOX2 – 2 OHMS
Power @ 1Ω: 4 X 300 WRMS
Power @ 2Ω: 4 X 198 WRMS
Power @ 4Ω: 4 X 131 WRMS

Bridge Power @ 2Ω: 2 X 600WRMS
Bridge Power @ 4Ω: 2 X 396WRMS
1200.4 EVOX2 – 4 OHMS
Power @ 1Ω: N/ A
Power @ 2Ω: 4 X 300 WRMS
Power @ 4Ω: 4 X 198 WRMS

Bridge Power @ 2Ω: N/A
Bridge Power @ 4Ω: 2 X 600 WRMS
Frequency Response (-3dB):
5Hz – 22kHz
Low Pass filter (12dB/octave):
45Hz ~ 850Hz
High Pass filter (12dB/octave):
45Hz ~ 850Hz
Operating Voltage:
8V – 16V
SNR:
91dB
Input Sensitivity (RCA):
0.16 ~ 2V
Input Sensitivity (High Level input):
1.32V ~ 14.3V
Current Draw (Music):
2Ω: 55A
4Ω: 52A
Current Draw (Max):
2Ω: 110A
4Ω: 105A
Total Efficiency:
85%
Damping Factor (@100Hz nominal impedance):
200
Power Cable:
16mm²(5 AWG)
Speaker Cable
2 x 2.5mm² (13 AWG)
Recommended Fuse (Music):
60A
Recommended Battery (Music):
60Ah
Width:
5.4 in / 13,6 cm
Length:
7.1 in / 18,2 cm
Height:
2.2 in / 5,5 cm
