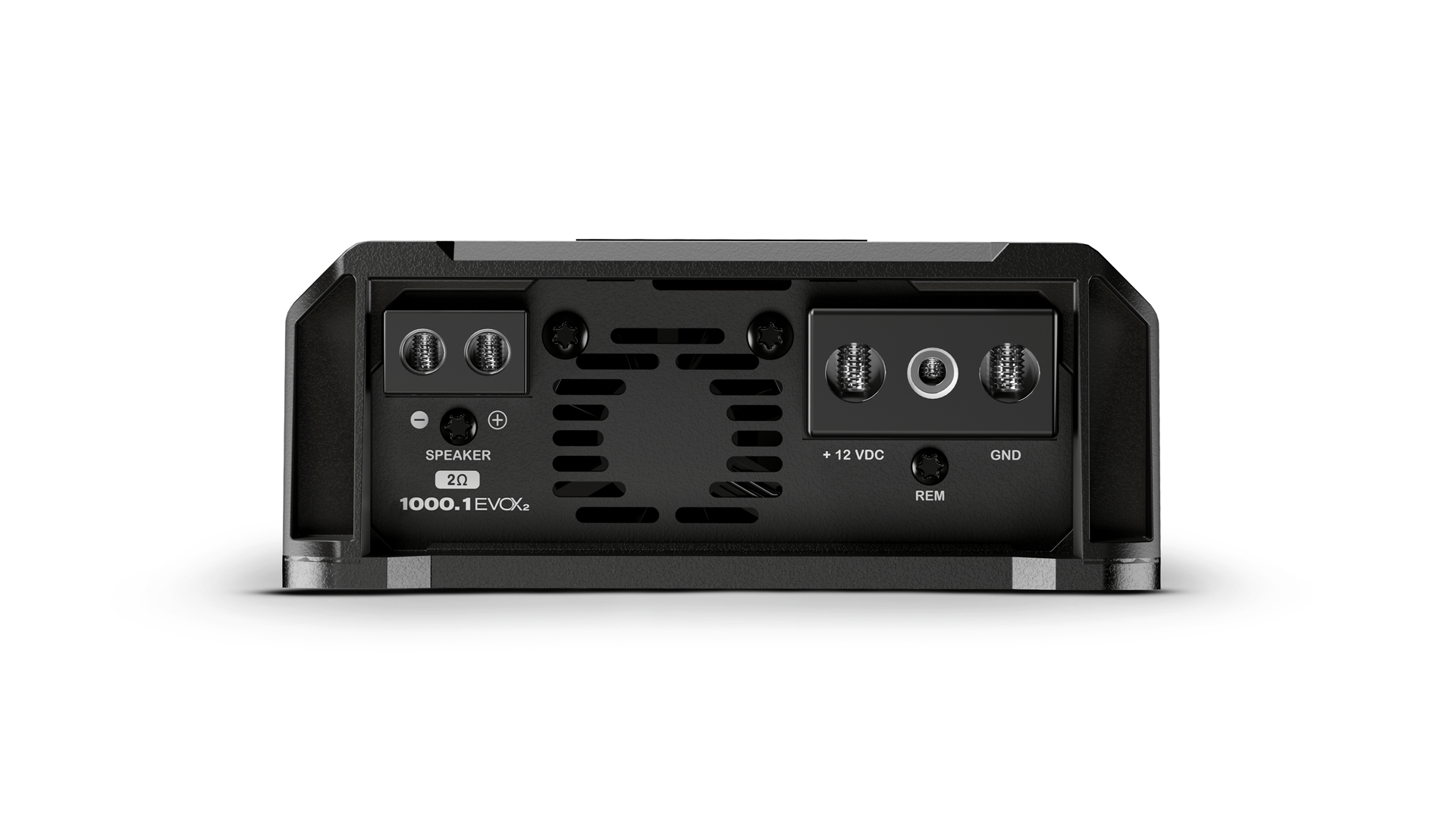

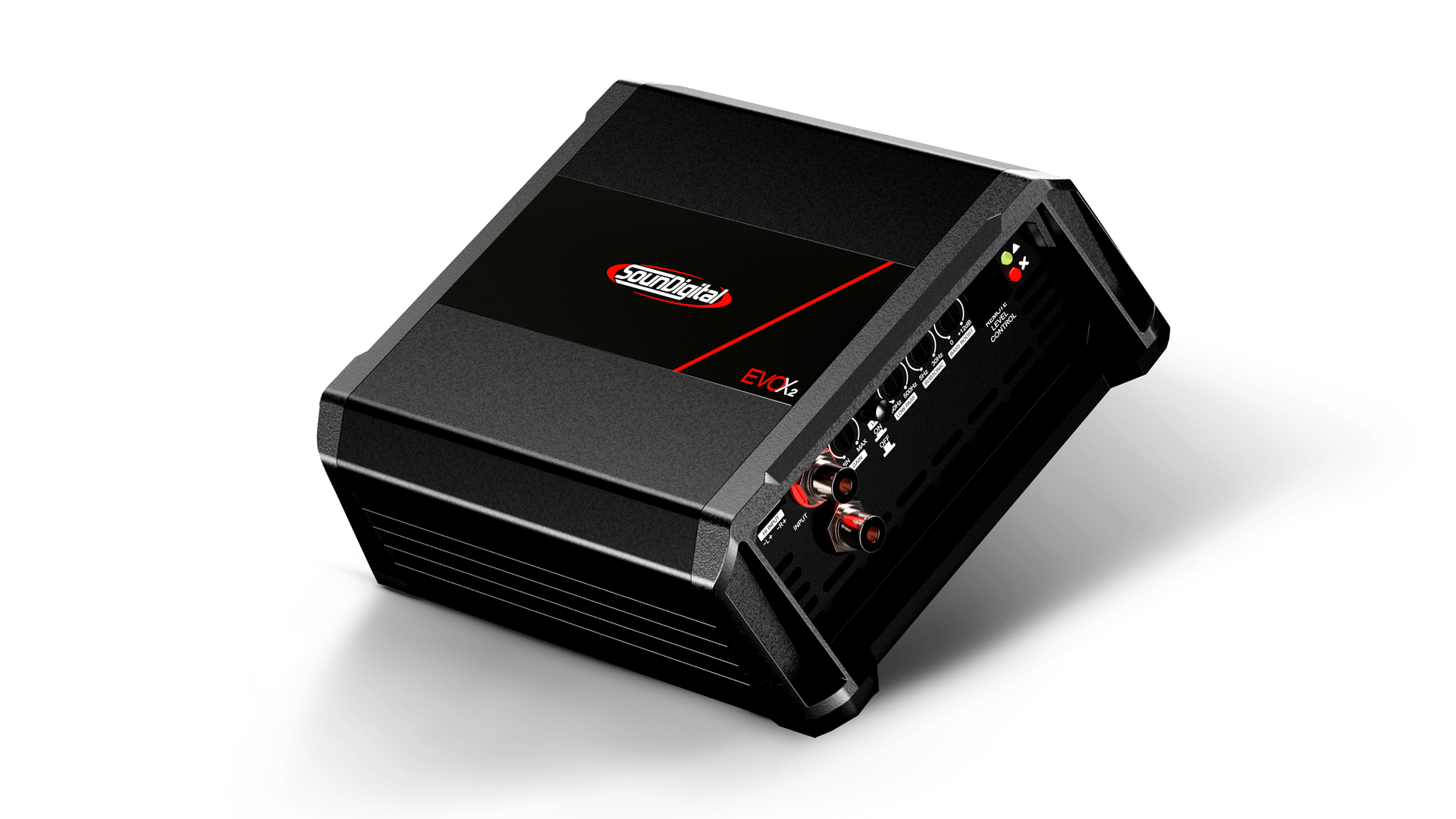

1000.1 EVOX2

The 1000.1 EVOX2 is a compact, modern amplifier that delivers 1000W RMS of power over 1 channel.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Available in versions:

Instruction manual

General Specifications

1000.1 EVOX2 – 1 OHM
Power @ 1Ω: 1 X 1000 WRMS
Power @ 2Ω: 1 X 721 WRMS
Power @ 4Ω: 1 X 476 WRMS
1000.1 EVOX2 – 2 OHMS
Power @ 1Ω: N/A
Power @ 2Ω: 1 X 1000 WRMS
Power @ 4Ω: 1 X 739 WRMS
Frequency Response (-3dB):
5Hz ~ 25kHz
Subsonic Filter (12dB/oct.):
5Hz ~ 40Hz
Low Pass Filter (12dB/oct.):
50Hz ~ 500Hz
Bass Boost:
0dB ~ 12dB @ 50Hz
Operating Voltage:
8V ~ 16V
SNR:
94dB
Input Sensitivity (RCA):
0.2V ~ 2V
Input Sensitivity (High Level input):
1.5V ~ 15V
Current Draw (music):
1Ω: 44A
2Ω: 45A
Current Draw (max.):
1Ω: 88A
2Ω: 90A
Total Efficiency:
1Ω: 89%
2Ω: 86%
Damping Factor (@100Hz nominal impedance):
>3000
Power Cable:
16mm² / 5 AWG
Speaker Cable:
2 x 4.0mm² / 11 AW
Recommended Fuse* (music):
50A
Recommended Battery (minimum):
50Ah
Width:
5.4 in / 13.6 cm
Length:
7.1 in / 18.1 cm
Height:
2.2 in / 5.4 cm
Weight:
1.12 kg (2.46 lb)
