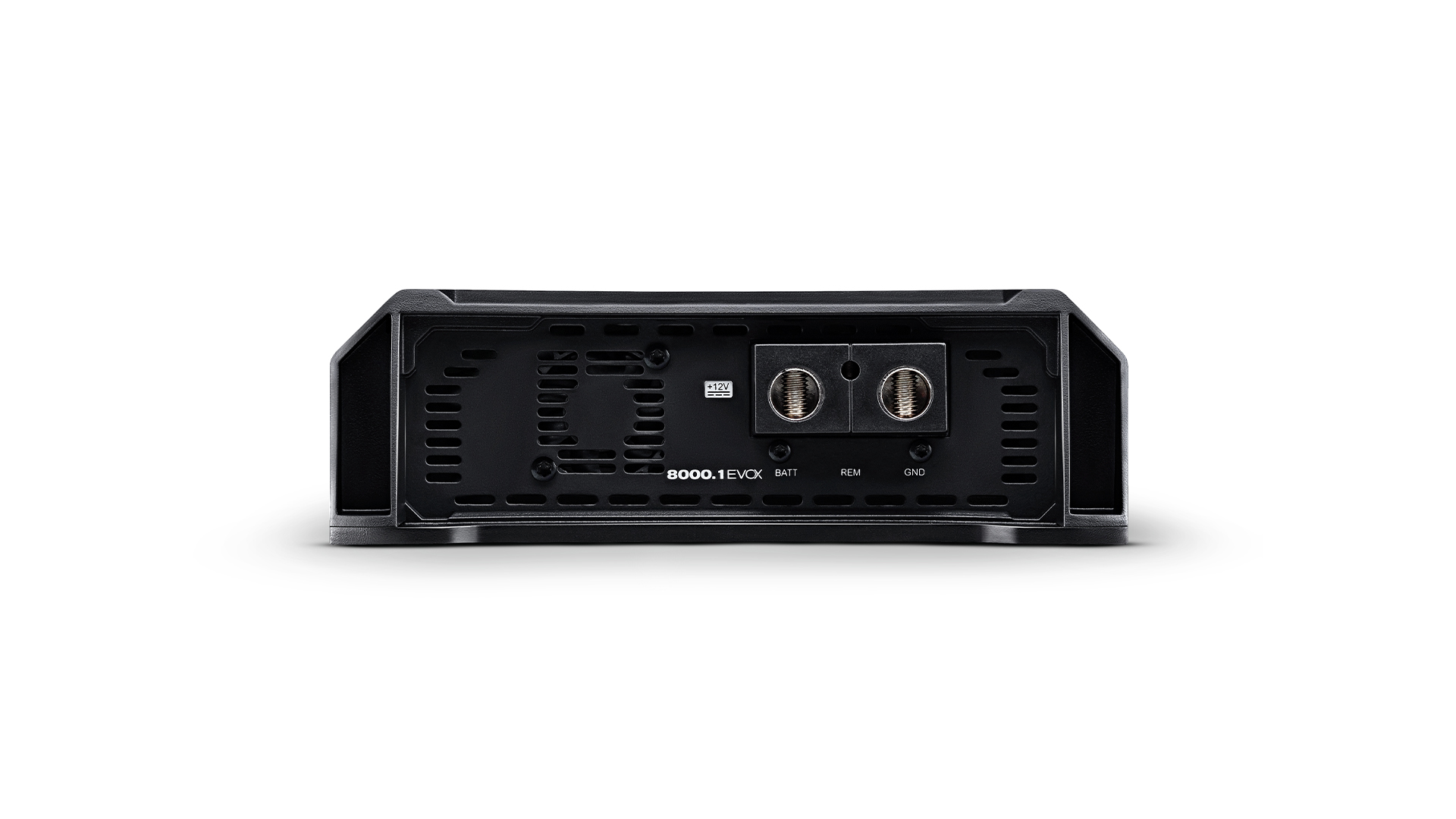

8000.1 EVOX
The 8000.1 EVOX is a compact, modern amplifier that delivers 8000W RMS of power over 1 channel.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Available in:
Instruction manualGeneral Specifications
+
-
8000.1 EVOX – 1 OHM
Power @ 4Ω: 1 X 3485W RMS
Power @ 2Ω: 1 X 5280W RMS
Power @ 1Ω: 1 X 8000W RMS8000.1 EVOX – 2 OHMS
Power @ 4Ω: 1 X 5280W RMS
Power @ 2Ω: 1 X 8000W RMS
Power @ 1Ω: N/AFrequency Response (-3dB):
5Hz ~ 500Hz
Frequency Response (-3dB):
5Hz ~ 500Hz
Subsonic Filter (12dB/octave):
5Hz ~ 30Hz
Low Pass Filter (12dB/octave):
50Hz ~ 500Hz
Operating Voltage:
8V ~ 16V
SNR:
82dB
Input Sensitivity (RCA):
0.2V ~ 4V
Current Draw (music):
402A
Current Draw (max):
804A
Total Efficiency:
79%
Damping Factor (@100Hz nominal impedance):
200
Power Cable:
70mm² (00 AWG)
Speaker Cable:
10mm² (7 AWG)
Remote Cable:
1.5mm² (15 AWG)
Recommended Fuse (Music):
400A
Recommended Battery (minimum):
400Ah
Width:
8.9 in / 22.4 cm
Length:
13.9 in / 35.4 cm
Height:
2.8 in / 7.1 cm
Weight:
4.7 kg / 10.3 lb
