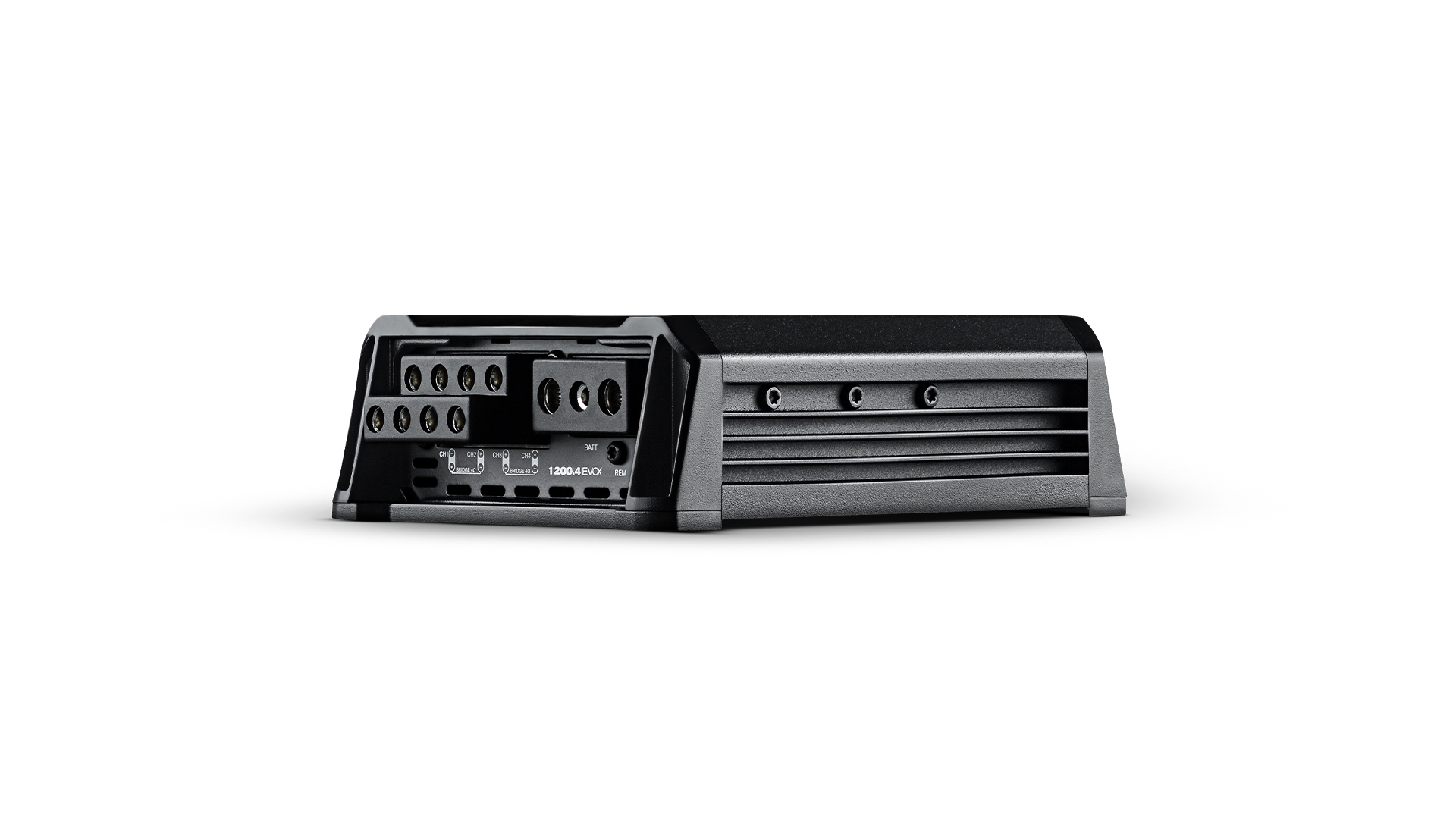

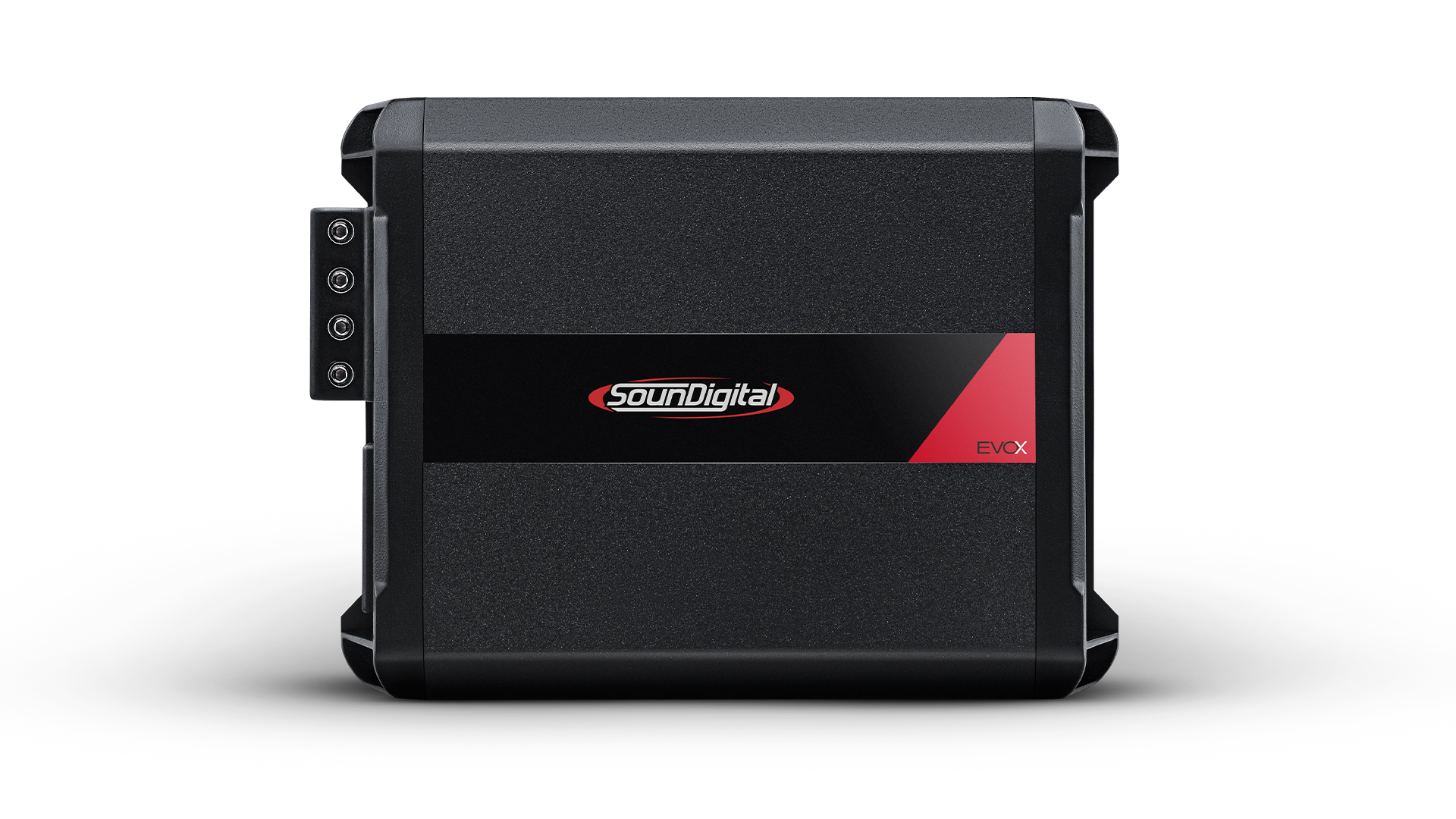

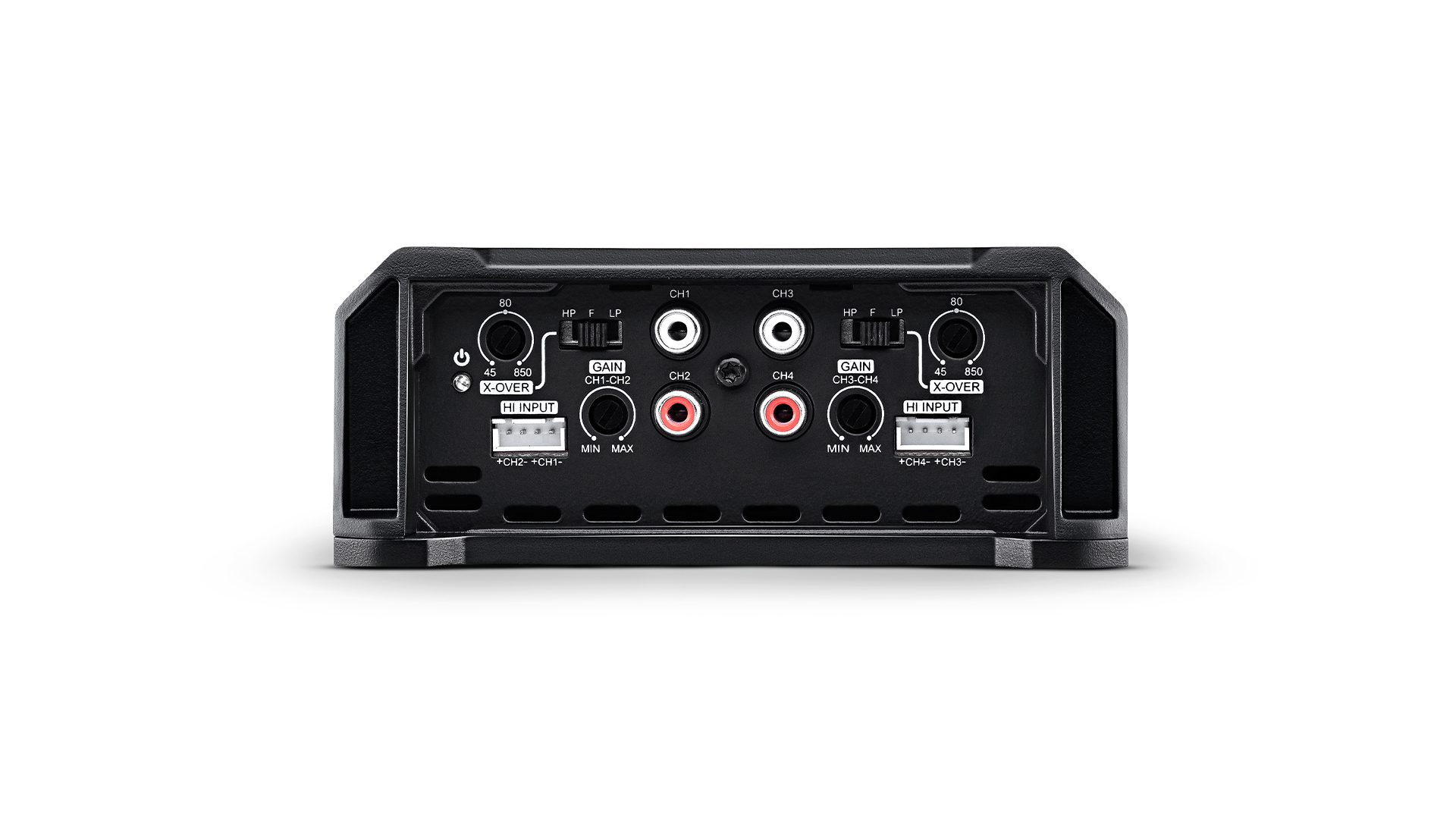

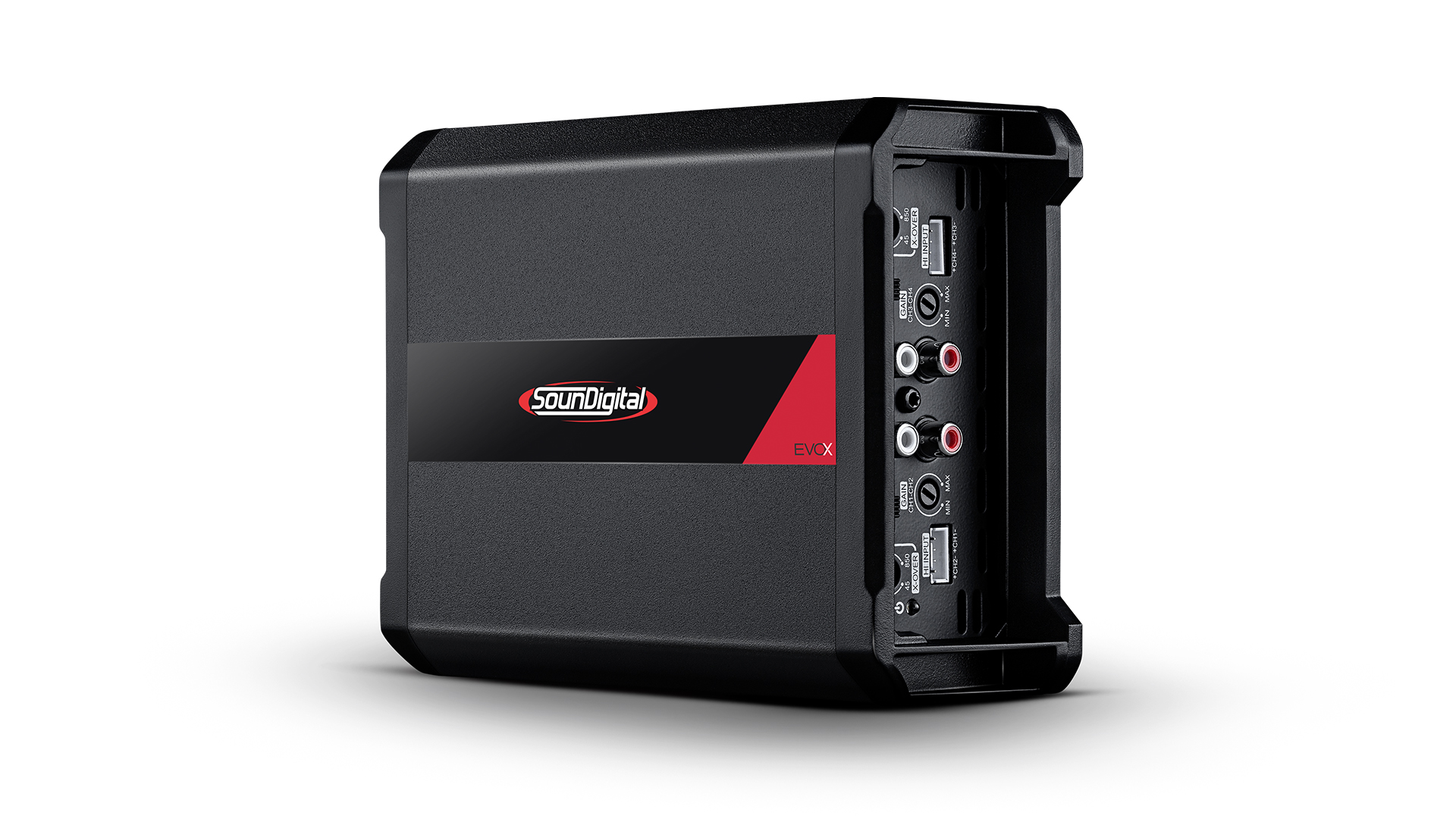

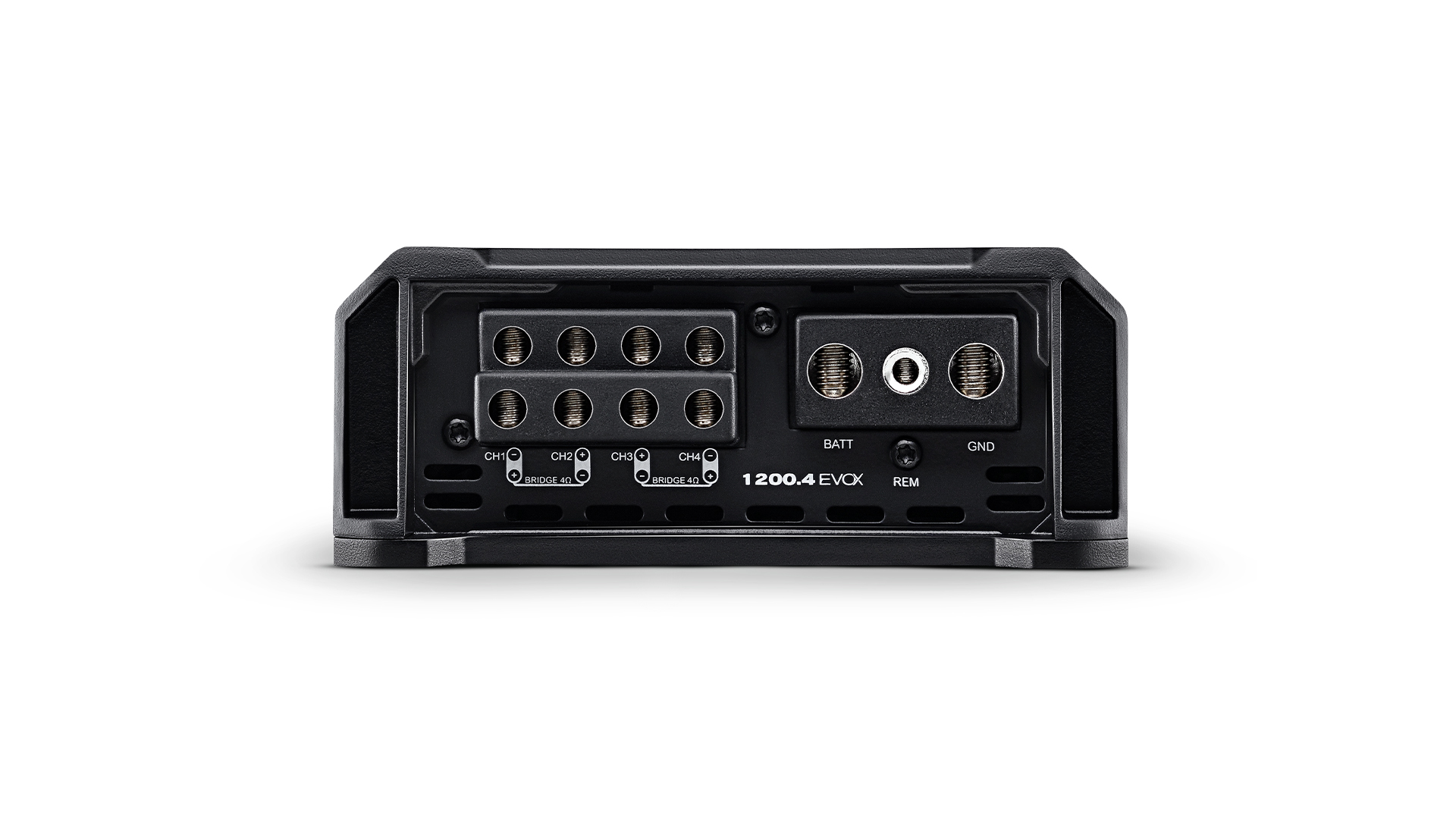

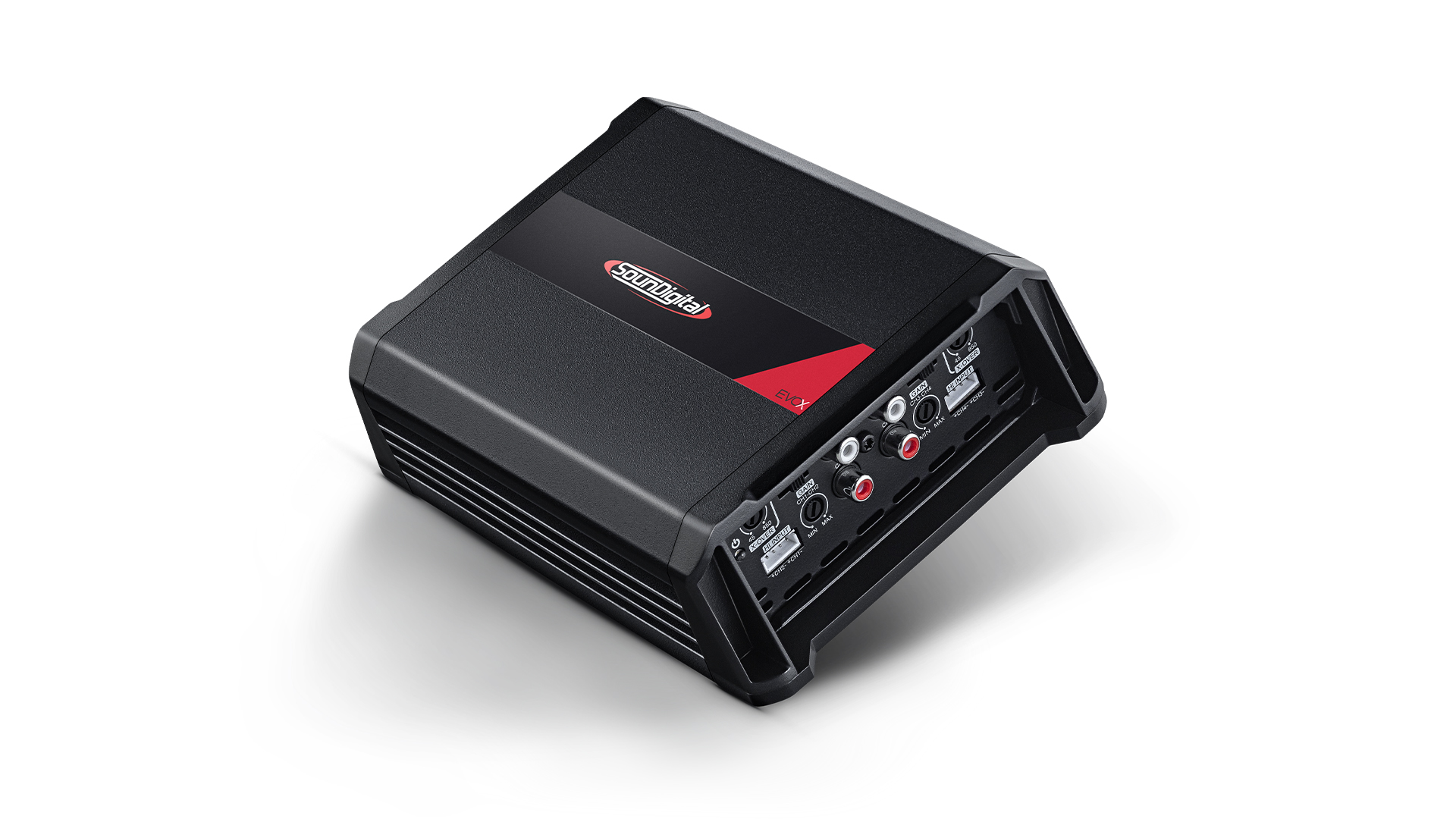

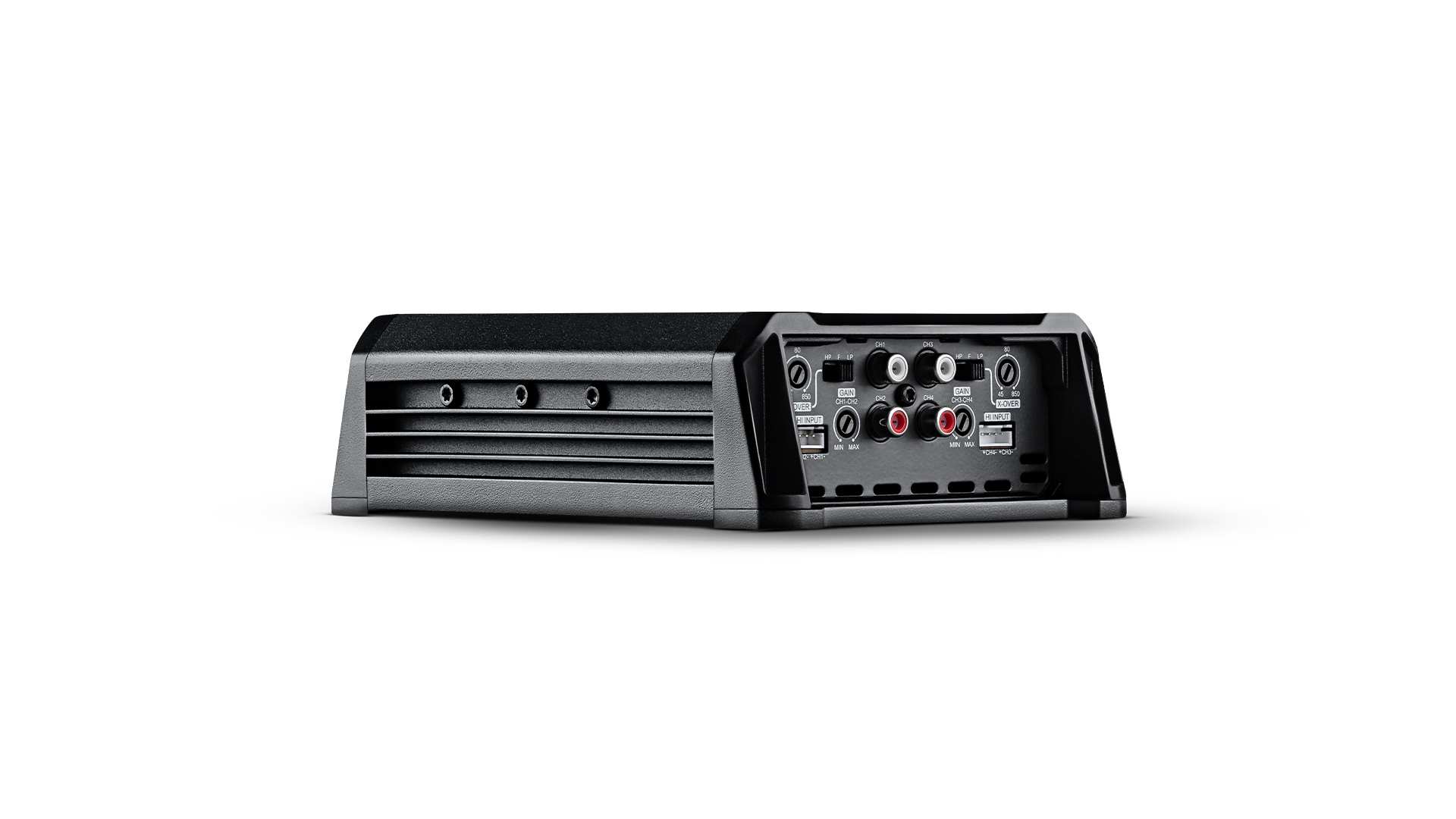

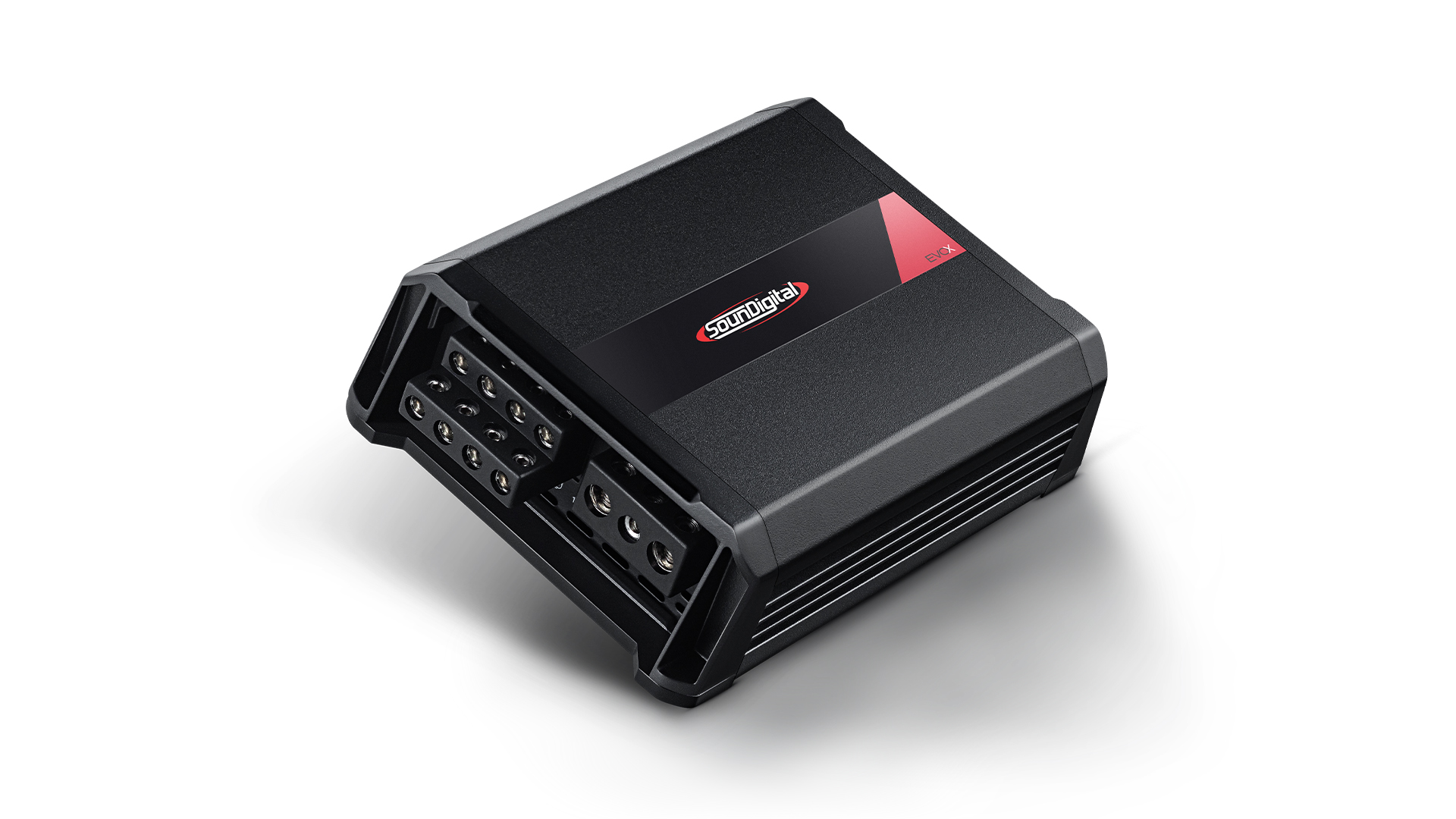

1200.4 EVOX
The 1200.4 EVOX is a compact, modern amplifier that delivers 12000W RMS of power distributed over 4 channels.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Available in:
Instruction manualGeneral Specifications
+
-
1200.4 EVOX – 2 OHMS
Power @ 1Ω: 4 X 300W RMS
Power @ 2Ω: 4 X 198W RMS
Power @ 4Ω: 4 X 130W RMS
Bridge Power @ 2Ω: 2 X 600W RMS
Bridge Power @ 4Ω: 2 X 396W RMS1200.4 EVOX – 4 OHMS
Power @ 1Ω: N/A
Power @ 2Ω: 4 X 300W RMS
Power @ 4Ω: 4 X 198W RMS
Bridge Power @ 2Ω: N/A
Bridge Power @ 4Ω: 2 X 600W RMSOperating Voltage:
8V – 16V
Current Draw (Music):
2Ω: 57A
4Ω: 58ACurrent Draw (Max):
2Ω: 113A
4Ω: 116ARecommended Fuse (Music):
60A
Total Efficiency:
2Ω: 84%
4Ω: 82%Damping Factor:
200
Frequency Response (-3dB):
5Hz – 22kHz
SNR:
2Ω: 88dB
4Ω: 91dBCrossover
LPF / HPF: 45Hz – 850Hz
Width:
5.3 in / 13,6 cm
Length:
7.1 in / 18,1 cm
Height:
2.2 in / 5,5 cm
Weight:
1,18 Kg
